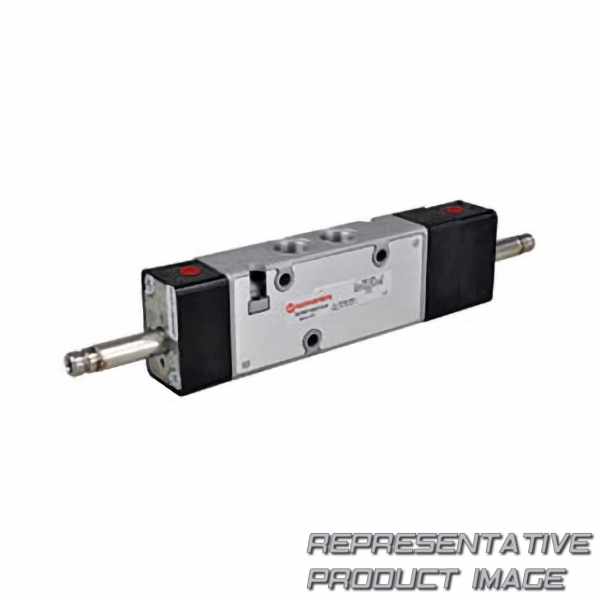

NORGREN V62CA11A-A2000 inline valves - solenoid

Name: V62CA11A-A2000 NORGREN
Brand: NORGREN
SKU: 778180-de-eur
Price: 162.48 EUR
Availability: InStock

162,48 € ~~317,82 €~~ -48%

verfügbar mit 3 bis 4 Wochen Lieferzeit nach United States

Technische Daten

max. Druck	2 ... 10 bar
Breite	80mm

Gewicht	640g

body		aluminium
data performance shelf life		10 years
Features		high flow rate
flow flow litresperminute		1900 l/m
Medium		compressed air
operating pressure pressure bar min to max range		2 ... 10 bar
operating temperature f temperature fahrenheit min to max range		14 ... 122 °f
height length millimetre		50 mm
weight weight kilogram		0.64 kg
pilot		internal
range		v60…63
springs		stainless steel

data performance b10 value number of cycles		8000000
eu country of origin		czechia
flow flow dm3sec		31.67 dm3/sec
Handhilfsbetätigung		turn to lock
mil spec		available on request
operating pressure psi pressure psi min to max range		29 ... 145 psi
operating temperature temperature celsius min to max range		-10 ... 50 °c
length length millimetre		190 mm
width length millimetre		80 mm
Anschlussgröße		g3/8
spool		stainless steel
valve operation		2x3/2
