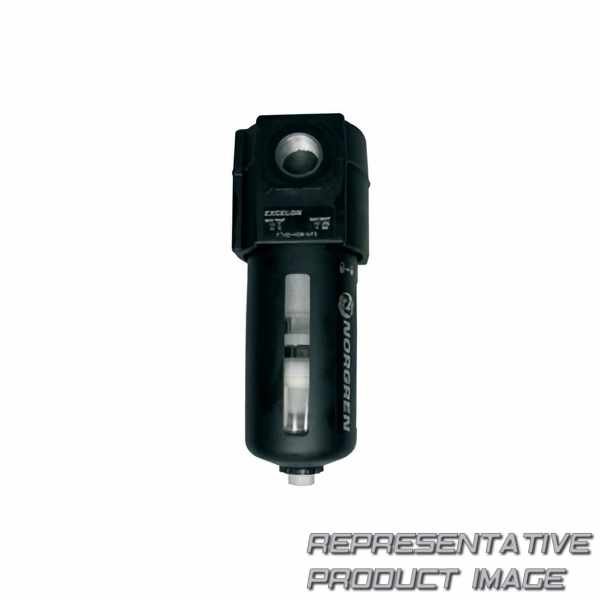

NORGREN F74G-4GN-AP3 excelon general purpose filter

Name: F74G-4GN-AP3 NORGREN
Brand: NORGREN
SKU: 780889-de-eur
Price: 258.28 EUR
Availability: InStock

258,28 € ~~320,27 €~~ -19%

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	10 bar
Breite	80mm

Gewicht	810g

body		aluminium
bowl type		polymer with guard
Ablauftyp		automatic drain
eu country of origin		mexico
filter element m particlesize micron		40 μm
flow flow dm3secbar		83 dm3/(s.bar) dm3/sec
maximum inlet pressure pressure bar		10 bar
mil spec		available on request
operating temperature temperature celsius min to max range		-34 ... 50 °c
length length millimetre		186 mm
width length millimetre		80 mm
Anschlussgröße		g1/2
range		f74g
retrieve price		true
service life indicator		without

bowl		polycarbonate
data performance shelf life		10 years
elastomers		neoprene
filter element		sintered polypropylene
flow flow dm3sec		66 dm3/sec
maximum inlet pressure imperial pressure psi		145 psig
Medium		compressed air
operating temperature f temperature fahrenheit min to max range		-30 ... 122 °f
height length millimetre		74 mm
weight weight kilogram		0.81 kg
partially replaced part		f84g-4gn-ap3
product style		modular
replaced flag		yes
Baureihe		excelon
Thread Type		iso g parallel
