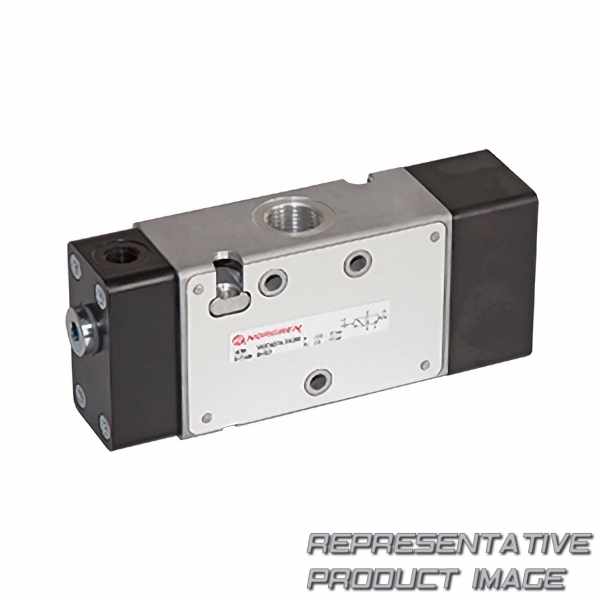

NORGREN V62C4D7A-XA090 inline valves - pilot

Name: V62C4D7A-XA090 NORGREN
Brand: NORGREN
SKU: 783677-de-eur
Price: 169.61 EUR
Availability: InStock

169,61 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Actuation Type	air pilot / spring return
max. Druck	-0.9 ... 10 bar

Breite	80mm
Gewicht	479g

actuation		air pilot / spring return
data performance b10 value number of cycles		8000000
eu country of origin		czechia
flow flow dm3sec		43.33 dm3/sec
Medium		compressed air
operating pressure pressure bar min to max range		-0.9 ... 10 bar
operating temperature f temperature fahrenheit min to max range		14 ... 122 °f
height length millimetre		50 mm
weight weight kilogram		0.479 kg
pilot exhaust		g1/8
Anschlussgröße		g3/8
spool		stainless steel
valve operation		3/2

body		aluminium
data performance shelf life		3 years
Features		high flow rate
flow flow litresperminute		2600 l/m
mil spec		available on request
operating pressure psi pressure psi min to max range		-13 ... 145 psi
operating temperature temperature celsius min to max range		-10 ... 50 °c
length length millimetre		190 mm
width length millimetre		80 mm
pilot pressure pressure bar min to max range		2.5 ... 10 bar
range		v60…63
springs		stainless steel
