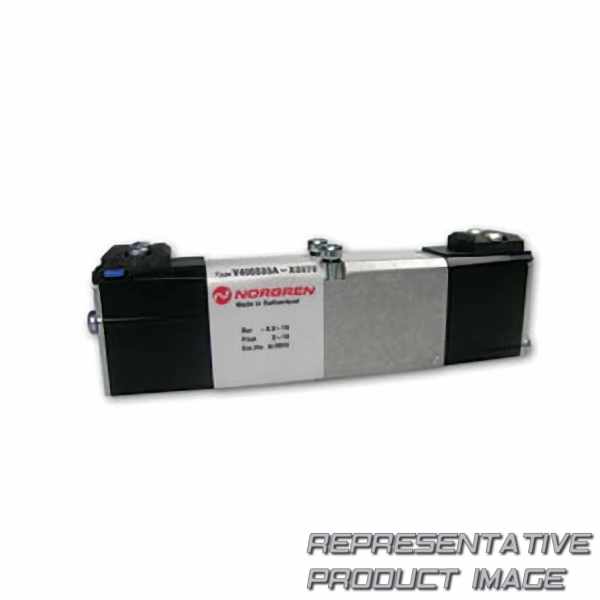

NORGREN V45A533A-X0020 mini iso valve - solenoid

Name: V45A533A-X0020 NORGREN
Brand: NORGREN
SKU: 789316-de-eur
Price: 115.67 EUR
Availability: InStock

115,67 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

actuation		air pilot / air pilot
data performance b10 value number of cycles		15000000
eu country of origin		czechia
flow flow litresperminute		1200 l/m
Medium		compressed air
mounting		sub-base
operating pressure pressure bar min to max range		-0.9 ... 10 bar
operating temperature f temperature fahrenheit min to max range		5 ... 176 °f
operator 12		air
height length millimetre		27 mm
weight weight kilogram		0.18 kg
pilot pressure pressure bar min to max range		2 ... 10 bar
product style		sub-base
range		v45
Baureihe		mini iso valves
springs		stainless steel
valve operation		5/2

body		diecast aluminium
data performance shelf life		3 years
flow flow dm3sec		20 dm3/sec
fluid temperature temperature celsius min to max range		-15 ... 50 °c
mil spec		available on request
nuts and screws		zinc plated steel
operating pressure psi pressure psi min to max range		12.76 ... 145 psi
operating temperature temperature celsius min to max range		-15 ... 50 °c
operator 14		air
length length millimetre		130 mm
width length millimetre		80 mm
Anschlussgröße		sub-base
Schutzklasse		nema 4
Dichtungen		hnbr
spool technology		softseal spool
Standard		vdma 24 563
valve size length millimetre		26 mm
