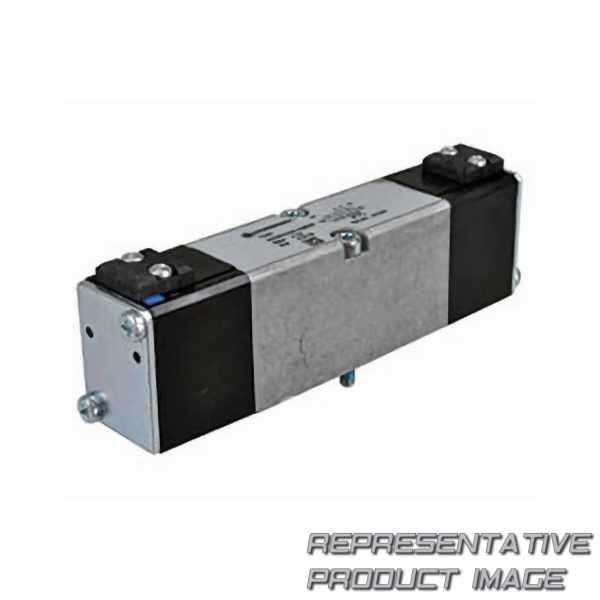

NORGREN V44A533A-X0020 mini iso valve - pilot

Name: V44A533A-X0020 NORGREN
Brand: NORGREN
SKU: 789118-de-eur
Price: 147.04 EUR
Availability: InStock

147,04 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

actuation		air pilot / air pilot
data performance b10 value number of cycles		60000000
eu country of origin		czechia
flow flow litresperminute		900 l/m
mil spec		available on request
nuts and screws		zinc plated steel
operating pressure psi pressure psi min to max range		26 ... 232 psi
operating temperature temperature celsius min to max range		-15 ... 80 °c
operator 14		air
length length millimetre		130 mm
width length millimetre		85 mm
Anschlussgröße		sub-base
Schutzklasse		nema 4
Dichtungen		hnbr
spool technology		glandless spool and sleeve
Standard		vdma 24 563
valve size length millimetre		26 mm

body		diecast aluminium
data performance shelf life		3 years
flow flow dm3sec		15 dm3/sec
Medium		compressed air
mounting		sub-base
operating pressure pressure bar min to max range		-0.9 ... 16 bar
operating temperature f temperature fahrenheit min to max range		-15 ... 80 °f
operator 12		air
height length millimetre		27 mm
weight weight kilogram		0.2 kg
pilot pressure pressure bar min to max range		2 ... 16 bar
product style		sub-base
range		v44
Baureihe		mini iso valves
springs		stainless steel
valve operation		5/2
