| Brand | SNR | ||

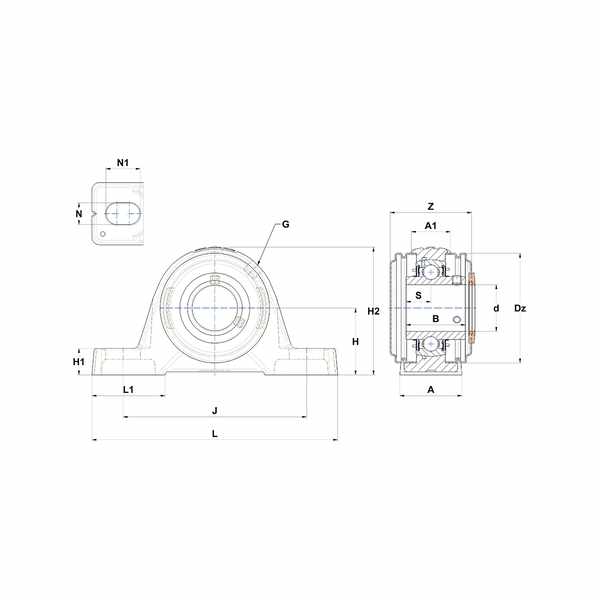

| A1 - Housing top width | 34 mm | ||
| G - Grease fitting | R1/8" | ||
| H1 - Housing foot height | 21,5 mm | ||
| J - Mounting holes distance | 158 mm | ||
| L1 - Housing foot length | 61 mm | ||
| N1 - Mounting hole length | 23 mm | ||
| Z - Width over covers | 76,1 mm | ||
| C0 - Static load rating | 23,2 kN | ||
| Operating temperature max. | 100 °C |
| A - Housing width | 54 mm | ||
| Dz - Outer diameter of cover | 100 mm | ||
| H - Distance mounting base to centerline spheric. seating diam. | 57,2 mm | ||
| H2 - Housing height | 115 mm | ||
| L - Housing length | 200 mm | ||
| N - Mounting hole dimension | 18 mm | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 19 mm | ||
| C - Dynamic load rating | 35,1 kN | ||
| Operating temperature min. | -20 °C | ||
| Recommended tightening torque for set screw | 22 N-m |
