| Brand | SNR | ||

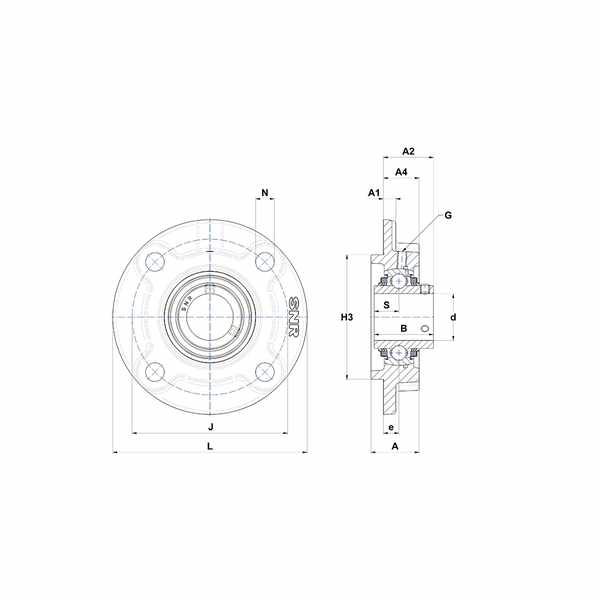

| A1 - Housing foot height / flange height | 14 mm | ||
| A4 - Housing height from mounting surface | 28 mm | ||
| G - Grease fitting | M6x1 | ||
| J - Mounting holes distance | 138 mm | ||
| N - Mounting hole dimension | 16 mm | ||
| C - Dynamic load rating | 35,1 kN | ||
| Operating temperature min. | -20 °C | ||
| Recommended tightening torque for set screw | 22 N-m |
| A - Housing height | 40 mm | ||
| A2 - Total height from mounting surface | 42,6 mm | ||
| e - Distance mounting surface to bearing center | 10 mm | ||
| H3 - Centering dia | 110 mm | ||
| L - Housing width / diameter | 165 mm | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 19 mm | ||
| C0 - Static load rating | 23,2 kN | ||
| Operating temperature max. | 100 °C |
