| Recommended tightening torque for set screw | 5,5 N-m | ||
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 19,5 kN | ||

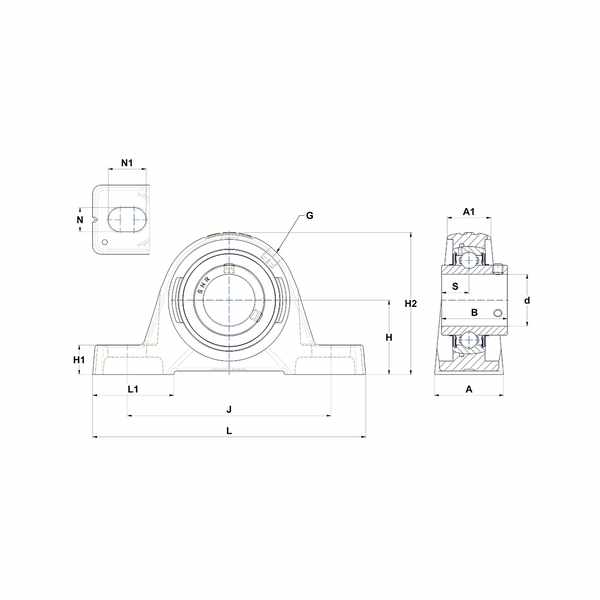

| N1 - Mounting hole length | 22 mm | ||
| L1 - Housing foot length | 47 mm | ||
| J - Mounting holes distance | 118 mm | ||
| H1 - Housing foot height | 17 mm | ||
| G - Grease fitting | R1/8" | ||
| A - Housing width | 40 mm |
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 11,2 kN | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 15,9 mm | ||
| N - Mounting hole dimension | 14 mm | ||
| L - Housing length | 158 mm | ||
| H2 - Housing height | 82 mm | ||
| H - Distance mounting base to centerline spheric. seating diam. | 42,9 mm | ||
| A1 - Housing top width | 25 mm | ||
| Brand | SNR |
