| Recommended tightening torque for set screw | 5,5 N-m | ||
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 19,5 kN | ||

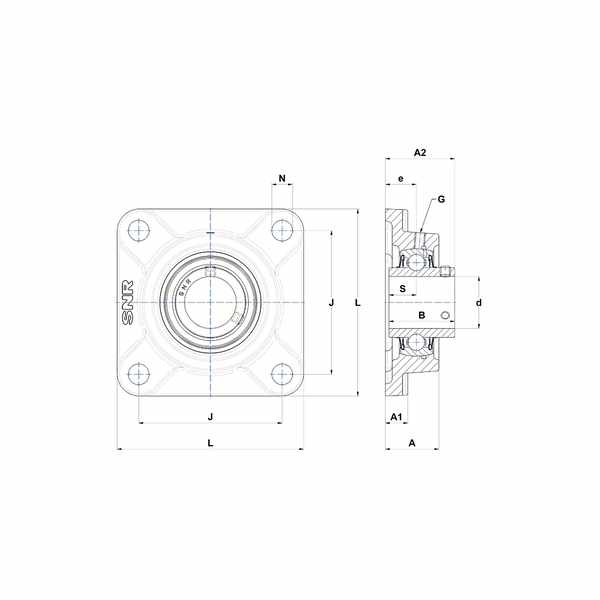

| N - Mounting hole dimension | 12 mm | ||
| J - Mounting holes distance | 83 mm | ||
| e - Distance mounting surface to bearing center | 18 mm | ||
| A1 - Housing foot height / flange height | 13 mm | ||
| Brand | SNR |
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 11,2 kN | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 15,9 mm | ||
| L - Housing width / diameter | 108 mm | ||
| G - Grease fitting | M6x1 | ||
| A2 - Total height from mounting surface | 40,2 mm | ||
| A - Housing height | 31 mm |
