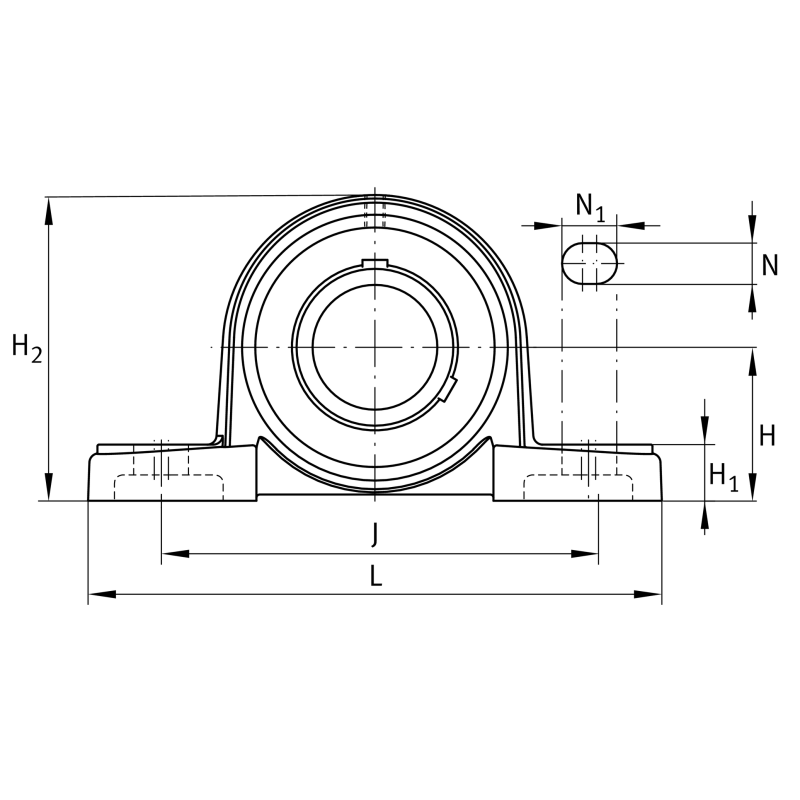

| Bore diameter | d | 50 | mm |
| Hight | H2 | 114 | mm |
| Length total | L | 206 | mm |
| Distance fixing bore | J | 159 | mm |
| Length (slot) | N1 | 25 | mm |
| Width (slot) | N | 20 | mm |
| Distance shaft axis | h | 57,20 | mm |
| Heigth (base) | H1 | 21 | mm |
| Distance of raceway to locking collar | S1 | 32,60 | mm |
| Width (base) | A | 60 | mm |
| Breite | B | 51,60 | mm |
| connection thread lubrication | M6 |
