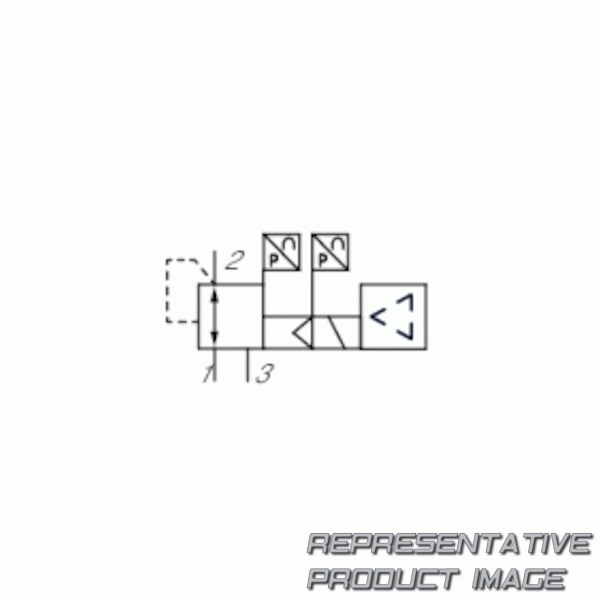

| Typ | piloted pressure regulator | ||
| working pressure max | 11 bar | ||
| max. ambient temperature | 60 °c | ||
| dc operating voltage | 24 v | ||
| mounting orientation | any | ||
| Schutzklasse | ip65 | ||
| regulation range min. | 0.5 bar | ||
| pilot control exhaust | with directional pilot air exhaust | ||
| max. medium temperature | 60 °c | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| Gewicht | 0.19 kg | ||
| seal material | nitrile butadiene rubber |
| working pressure min. | 0 bar | ||
| min. ambient temperature | -10 °c | ||
| Medium | compressed air | ||
| Hysterese | < 0,05 bar | ||
| max. power consumption | 180 ma | ||
| repetitive precision | < 0,04 bar | ||
| regulation range max. | 10 bar | ||
| min. medium temperature | -10 °c | ||
| max. particle size | 40 µm | ||
| oil content of compressed air max. | 5 mg/m³ | ||
| Gehäusematerial | polyarylamide |
