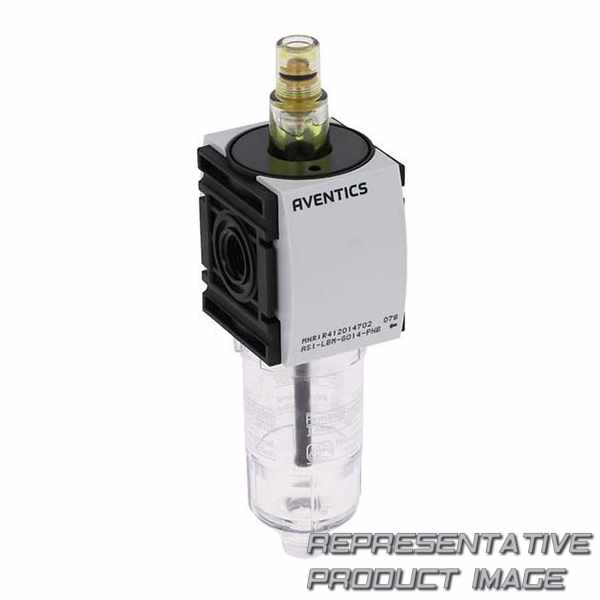

| parts | lubricator | ||
| compressed air connection | g 1/4 | ||
| mounting orientation | vertical | ||
| working pressure max | 12 bar | ||
| max. ambient temperature | 50 °c | ||
| air supply | right | ||
| lubricator reservoir volume | 35 cm³ | ||
| Funktion | can be assembled into blocks | ||
| Gehäusematerial | polyamide | ||
| seal material | acrylonitrile butadiene rubber |
| reservoir | reservoir, polycarbonate, without protective guard | ||
| nominal flow qn | 1400 l/min | ||
| working pressure min. | 0.8 bar | ||
| min. ambient temperature | -10 °c | ||
| Medium | compressed air, neutral gases | ||
| type of filling | manual oil filling | ||
| oil dosing at 1000 l/min | 10-20 drops | ||
| Gewicht | 0.187 kg | ||
| material front plate | acrylonitrile butadiene styrene | ||
| material reservoir | polycarbonate |
