| min. medium temperature | -20 °c | ||
| stroke max. | 1200 mm | ||
| weight 0 mm stroke | 0.082 kg | ||
| Kolbenstangengewinde | m10x1,25 | ||
| working pressure min. | 1 bar | ||
| min. ambient temperature | -20 °c | ||
| retracting piston force | 260 n | ||
| scraper | food-grade scraper | ||
| piston rod | single | ||
| magnetic piston | piston with magnet | ||

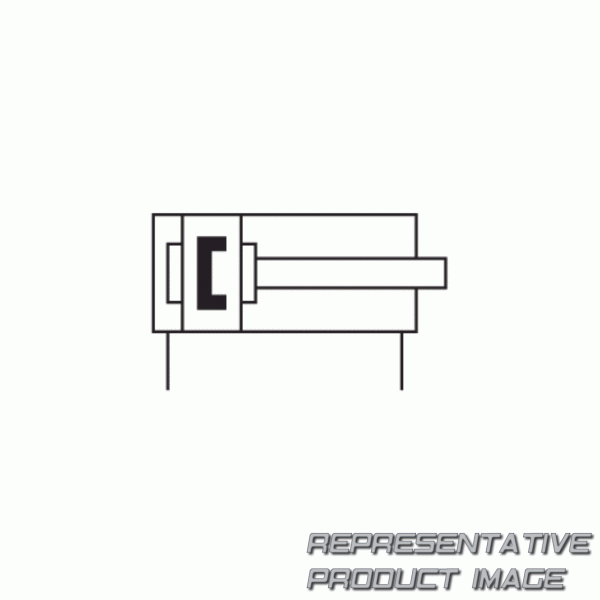

| Funktionsprinzip | double-acting | ||
| Hub | 200 mm | ||
| Standards | iso 6432 |
| Medium | compressed air | ||
| weight +10 mm stroke | 0.0055 kg | ||
| impact energy | 0.35 j | ||
| working pressure max | 10 bar | ||
| max. ambient temperature | 80 °c | ||
| extracting piston force | 309 n | ||
| pressure for determining piston forces | 6,3 bar | ||
| cylinder special features | version: short type | ||
| environmental requirements | industry standard, suitable for use in food processing, atex optional | ||
| Dämpfung | elastic cushioning | ||
| Anschlüsse | g 1/8 | ||
| piston Ø | 25 mm |
