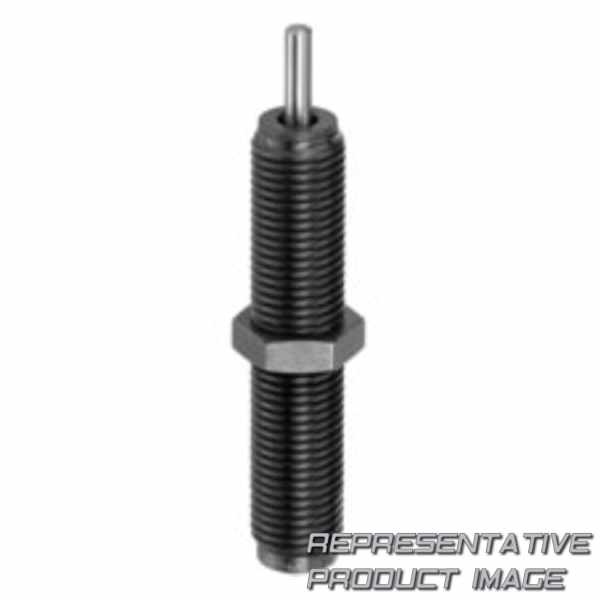

| Typ | sa2-rt | ||
| Hub | 14 mm | ||
| max. energy absorption/hour | 50000 nm | ||
| Medium | oil | ||
| max. ambient temperature | 60 °c | ||
| effective mass me max. | 17 kg | ||
| return spring force max. | 23 n | ||
| impact speed max. | 4.1 m/s | ||
| Gewicht | 0.05 kg | ||
| Werkstoff Kolbenstange | stainless steel |
| Mounting thread | m14x1,5 | ||
| max. energy absorption/stroke | 30 nm | ||
| Dämpfung | self-compensating | ||
| min. ambient temperature | -10 °c | ||
| effective mass me min. | 3.5 kg | ||
| return spring force min. | 13 n | ||
| impact speed min. | 1.9 m/s | ||
| mounting | lock nut | ||
| material cylinder tube | steel | ||
| material lock nut | steel |
