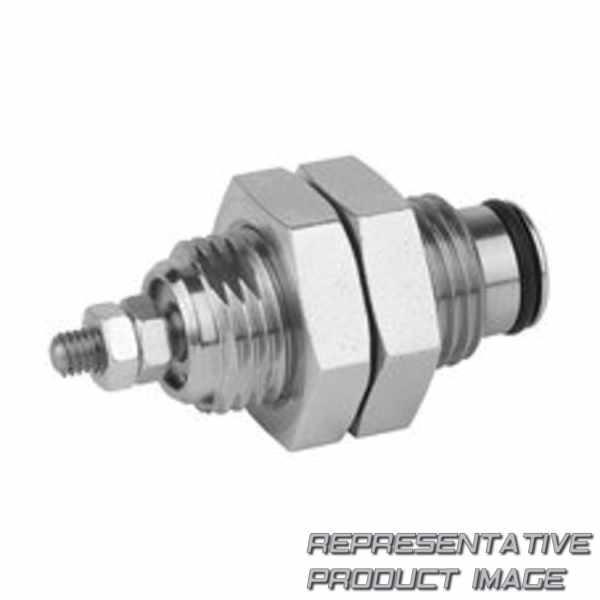

| piston Ø | 12 mm | ||
| Funktionsprinzip | single-acting, retracted without pressure | ||
| magnetic piston | piston with magnet | ||
| scraper | standard industrial scraper | ||
| retracting piston force | 6.8 n | ||
| min. ambient temperature | -25 °c | ||
| working pressure min. | 1.7 bar | ||
| Anschlüsse | m5 | ||
| Gewicht | 0.051 kg | ||
| min. medium temperature | -25 °c | ||
| max. particle size | 50 µm | ||
| oil content of compressed air max. | 5 mg/m³ |
| Hub | 4 mm | ||
| Dämpfung | elastic cushioning | ||
| environmental requirements | industry standard | ||
| pressure for determining piston forces | 6,3 bar | ||
| extracting piston force | 71 n | ||
| max. ambient temperature | 80 °c | ||
| working pressure max | 10 bar | ||
| Kolbenstangengewinde | m3 | ||
| Medium | compressed air | ||
| max. medium temperature | 80 °c | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| piston rod | stainless steel |
