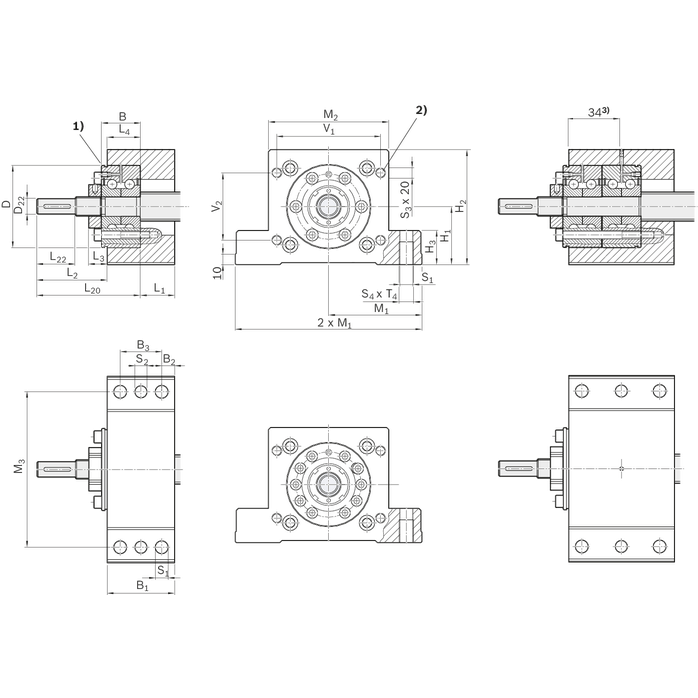

1)
Centering diameter D for motor flange
2)
Fastening thread S3 x T3 for motor flange
3)
only for material number R1595 330 20
| Kugellager | 17 | d | |
| Kugellager | 25 | d | |
| B2 | 10 | mm | |
| D22 | 15 | ||
| H2 | 81 | mm | |
| M1 | 72.5 mm ±0.015 | ||
| M3 | 120 | ||
| L2 | 57 | mm | |
| l4 | 18 | ||
| L22 | 30 | ||
| S2 | 9,70 | ||
| S4 | M12 | ||
| T4 | 20 | ||
| V2 | 50 | mm |
| Kugellager | 62 | d | |
| B1 | 60 | mm | |
| B3 | 40 | mm | |
| H1 | 41 mm ±0.015 | ||
| H3 | 28 | mm | |
| M2 | 80 | ||
| L1 | 42 | mm | |
| l3 | 17 | ||
| L20 | 75 | ||
| S1 | 10,50 | mm | |
| S3 | M8 | ||
| T3 | 20 | mm | |
| V1 | 66 | mm |
| Baugröße | 25x5/10/25 | ||
| Kugellager (Load ratings (axial)) | 31.000 | C | |
| Kissenblock-Einheit-Montage | 3,38 | m |
| Kugellager (Load ratings (axial)) | 18.800 | C | |
| Schlitzmutter | 15 | M<sub>A</sub> |
