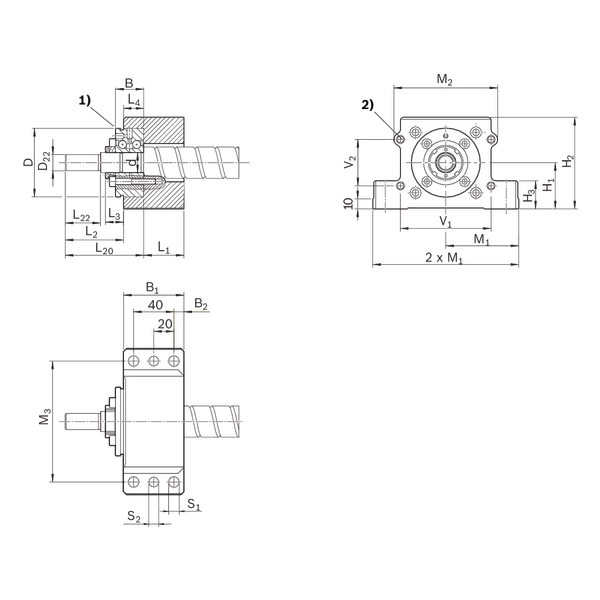

1)
Centering diameter D for motor flange
2)
Fastening thread S3 x T3 for motor flange
| Kugellager | 12 | d | |
| Kugellager | 25 | d | |
| B2 | 10 | mm | |
| H1 | 41 mm ±0.015 | ||
| H3 | 28 | mm | |
| M2 | 80 | ||
| L1 | 42 | mm | |
| l3 | 15 | ||
| L20 | 60 | ||
| S1 | 10,50 | mm | |
| S3 | M8 | ||
| V1 | 66 | mm |
| Kugellager | 55 | d | |
| B1 | 60 | mm | |
| D22 | 10 | ||
| H2 | 81 | mm | |
| M1 | 72.5 mm ±0.015 | ||
| M3 | 120 | ||
| L2 | 42 | mm | |
| l4 | 18 | ||
| L22 | 25 | ||
| S2 | 9,70 | ||
| T3 | 15 | mm | |
| V2 | 50 | mm |
| Baugröße | 20x5/10/20/40 | ||
| Kugellager (Load ratings (axial)) | 24.700 | C | |
| Kissenblock-Einheit-Montage | 1,49 | m |
| Kugellager (Load ratings (axial)) | 17.000 | C | |
| Schlitzmutter | 8 | M<sub>A</sub> |
