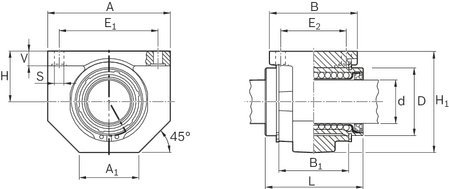

| D | 40 | mm | |
| A1 (Tolerance ISO 8062-3 - DCTG 9.) | 38 | mm | |
| B1 | 40 | mm | |
| E2 | 40 mm ±0.15 | ||
| Toleranz für H (Clamped (fastened) in relation to Ø d.) | + 5 - 19 |
||
| Linie | 58 | mm | |
| Ventil (Tolerance ISO 8062-3 - DCTG 9.) | 9 | mm |
| Industriekomponente (Tolerance ISO 8062-3 - DCTG 9.) | 74 | mm | |
| B (Tolerance ISO 8062-3 - DCTG 9.) | 54 | ||
| E1 | 60 mm ±0.15 | ||
| H | 30 | mm | |
| H1 (Tolerance ISO 8062-3 - DCTG 9.) | 60 | mm | |
| S | 5,50 |
| amax | 100 | m/s² | |
| Maschinenschutz | 0,89 | kg | |
| Losbrechkraft | 14 | N | |
| Betriebsbedingungen | Operating conditions |
| vmax | 2,50 | m/s | |
| FR (Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. ) | 5 | N | |
| Radialspiel der Welle h6 (Determined from working bore diameter and shaft tolerance statistics. When factoring in the outer diameter of the Linear Bushings and the housing bore, an h6 shaft produces similar radial clearance values as specified in the "H6H7" column under "Radial clearance" for the R0610 standard Linear Bushing. ) | + 25 + 6 |
||
| Zulässige Umgebungstemperatur (min ... max) (for standard Linear Bushings without wiper seals) | -10 °C ... +100 °C |
