REXROTH R044279301 miniature runner block resist nrii

Name: R044279301 REXROTH
Brand: REXROTH
SKU: 291401-de-eur
Price: 81.33 EUR
Availability: InStock

MWA-007-SNS-C0-H-3

81,33 €

14 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

High load capacity in all load directions, including moments about all axes, due to the use of largest possible ball sizes.
Size 15 and up with a lube nipples on the end face and relubrication port on the side
The runner blocks are delivered on a mounting aid.
Low friction
All steel parts of the runner block are made of rust and acid resistant material similar to ISO 683-17 / EN 10088

Baureihe (R0442)	Slimline, normal, standard height R0442
Baugröße (7)	7 size
Vorspannungsklasse (9)	C0 Without preload (clearance)

Genauigkeitsklasse (3)	H Hight Accuracy Level
Dichtungen (01)	Standard seals

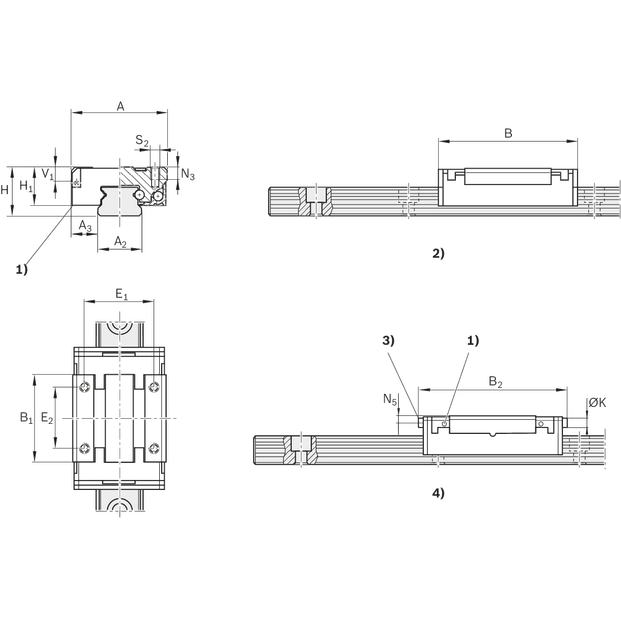

¹⁾ 4 lubrication holes
²⁾ Sizes 7 to 12
³⁾ Funnel-type lube nipple
⁴⁾ Sizes 15 - 20

a_max (Only with pre-tensioned systems. For non-pre-tensioned systems: a_max = 50 m/s²)	250	m/s²
Maschinenschutz	9	kg
Baugröße	7

v_max (Speeds of up to 5 m/s are possible. Service life is limited by increased wear to plastic parts. )	3	m/s
Betriebsbedingungen	Operating conditions
Zulässige Umgebungstemperatur (min ... max) (Brief peaks up to 100°C are permissible.)	-10 °C ... +80 °C
