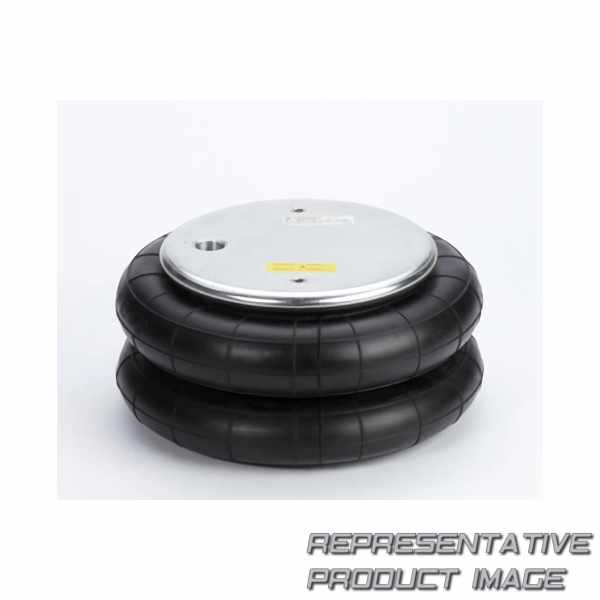

NORGREN PM/31122 air bellow

Name: PM/31122 NORGREN
Brand: NORGREN
SKU: 783086-de-eur
Price: 638.38 EUR
Availability: InStock

638,38 € ~~911,37 €~~ -29%

verfügbar mit 3 bis 4 Wochen Lieferzeit nach United States

Technische Daten

Hub	215 mm
max. Druck	0 ... 8 bar

Außendurchmesser	325 mm
Gewicht	4,80Kg

body style		bellows
eu country of origin		germany
maximum stroke metric length millimetre		320 mm
mil spec		available on request
non magnetic or magnetic		non-magnetic
operating pressure pressure bar min to max range		0 ... 8 bar
operating temperature f temperature fahrenheit min to max range		-22 ... 122 °f
operation		single acting
length length millimetre		75 mm
Anschlussgröße		g3/4
range		pm/31000
theoretical force force newton		35800 n

data performance shelf life		10 years
materials		aluminium
Medium		compressed air
nominal diameter		12"
number of convolutions		2
operating pressure psi pressure psi min to max range		0 ... 116 psi
operating temperature temperature celsius min to max range		-30 ... 50 °c
diameter length millimetre		325 mm
weight weight kilogram		4.8 kg
product style		compact
stroke length metric length millimetre		215 mm
Thread Type		bspp
