| Gewicht | .65763 lb | ||
| Anschlussgröße | 1/2 inch tube | ||
| Stromaufnahme | 20 ma or less (without load) | ||
| output specifications | current output note 6) 4 to 20 malinearity: ?2% f.s.or less, allowable load resistance: 300 or less with 12 vdc, 600 or less with 24 vdc | ||
| repeatability | ?1% f.s. or less (at 25c water) | ||
| operating fluid temperature | 0 to 90c | ||
| operating pressure range note 2) | 0 to 1 mpa | ||
| detection style | karman vortex | ||

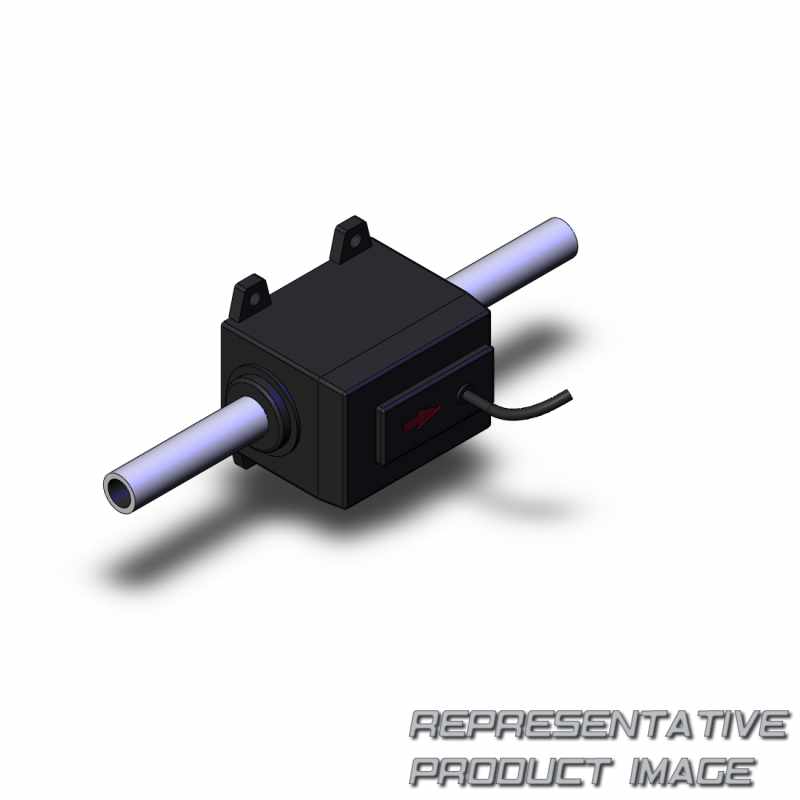

| Baureihe | pf2d520 |
| wetted material | body: new pfa, sensor: new pfa, tube: super pfa | ||
| environmental resistance | 1000 vp-p, pulse width: 1 ?s, rise time: 1 ns | ||
| Versorgungsspannung | 12 to 24 vdc (ripple ?10% or less) | ||
| temperature characteristics | ?5% f.s. or less (0 to 50c, based on 25c) | ||
| linearity note 4) | ?2.5% f.s. or less (at 25c water) | ||
| proof pressure note 3) | 1.5 mpa | ||
| rated flow range | 1.8 to 20 l/min note 1) | ||
| measured fluid | liquid not to corrode nor erode deionized water and/or teflon?. viscosity: 3mpa?s (3cp) or less |
