| Gewicht | .42972 lb | ||
| Anschlussgröße | 3/8 inch tube | ||
| Stromaufnahme | 20 ma or less (without load) | ||
| output specifications | analog output | ||
| repeatability | ?1% f.s. or less (at 25c water) | ||
| operating fluid temperature | 0 to 90c | ||
| operating pressure range note 2) | 0 to 1 mpa | ||
| detection style | karman vortex | ||

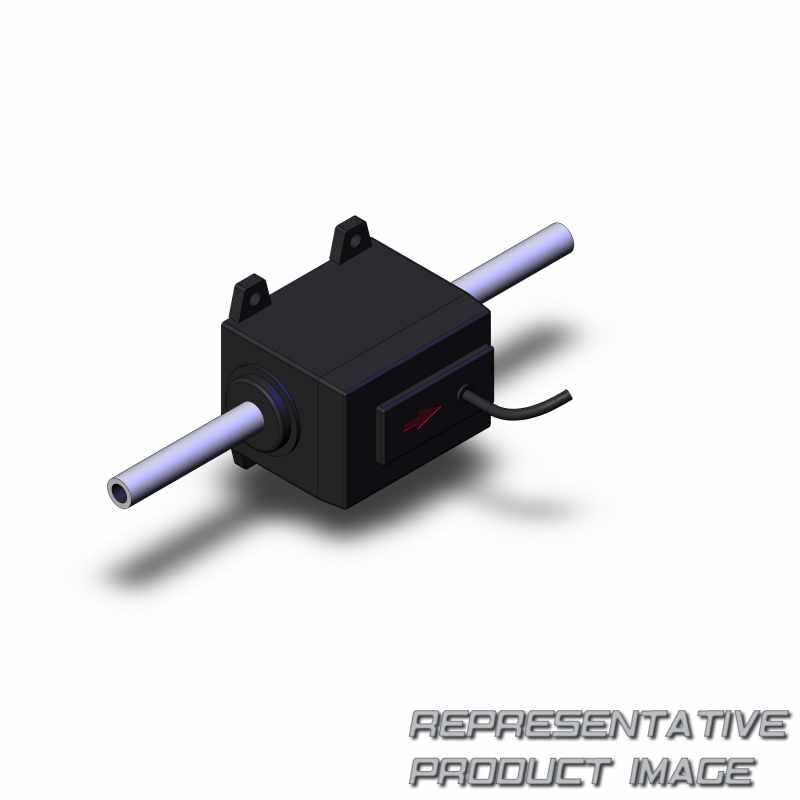

| Baureihe | pf2d504 |
| wetted material | body: new pfa, sensor: new pfa, tube: super pfa | ||
| environmental resistance | noise resistance | ||
| Versorgungsspannung | 12 to 24 vdc (ripple ?10% or less) | ||
| temperature characteristics | ?5% f.s. or less (0 to 50c, based on 25c) | ||
| linearity note 4) | ?2.5% f.s. or less (at 25c water) | ||
| proof pressure note 3) | 1.5 mpa | ||
| rated flow range | 0.4 to 4 l/min | ||
| measured fluid | liquid not to corrode nor erode deionized water and/or teflon?. viscosity: 3mpa?s (3cp) or less |
