| diameter shaft shoulder tolerance | h12 | ||
| diameter of housing shoulder tolerance | H12 | ||

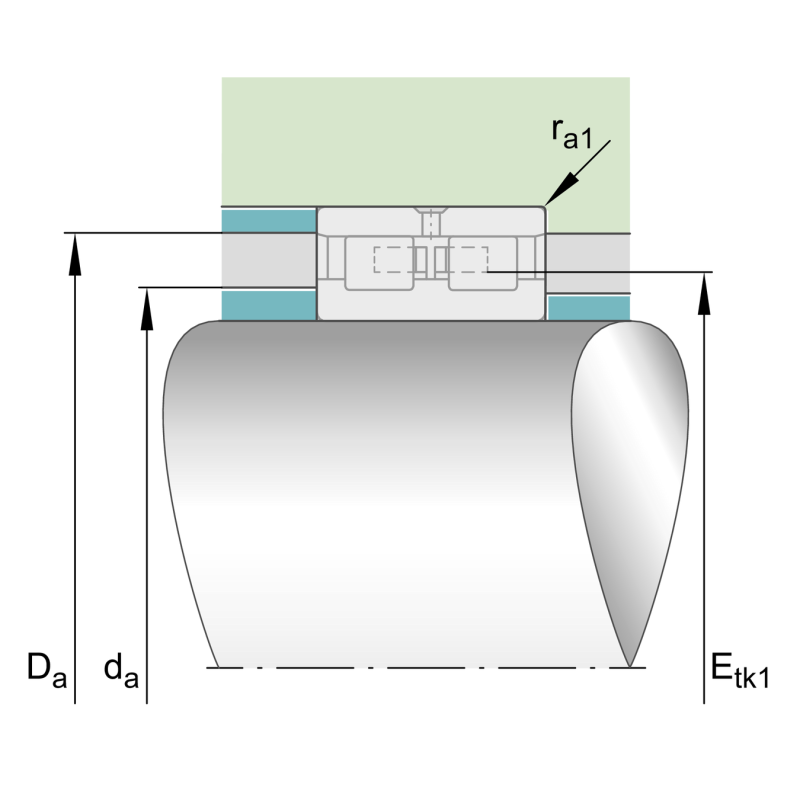

| Diameter shaft shoulder | da | 209 | mm |
| diameter of housing shoulder | Da | 260 | mm |
| Maximum recess radius | ra max | 2,10 | mm |
| Minimum chamfer dimension | rmin | 2,10 | mm |
| Width of lubricating groove | ns | 12,20 | mm |

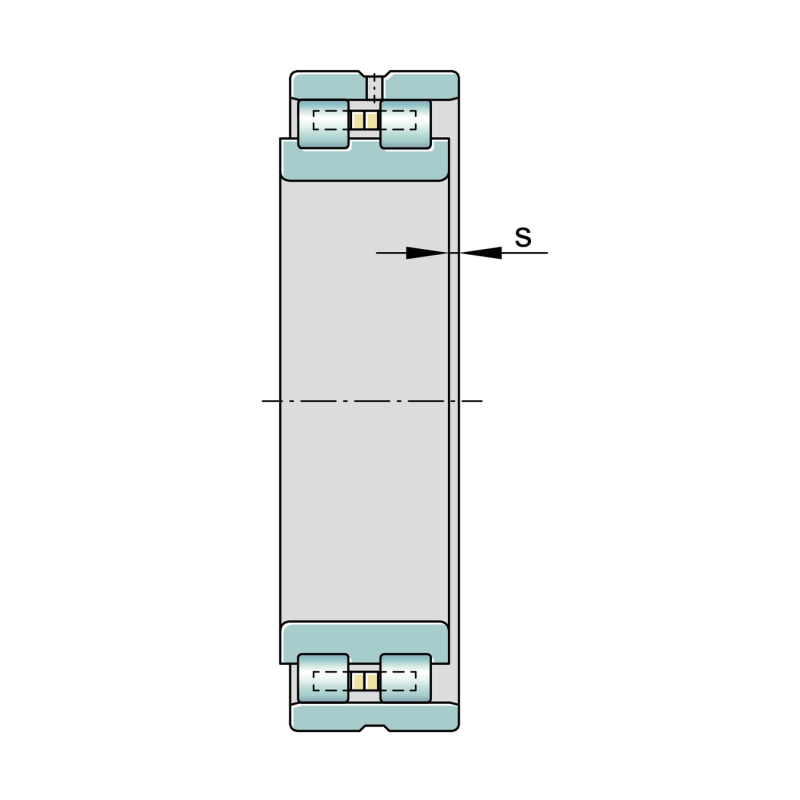

| Axial displacement | s1 | 4,80 | mm |

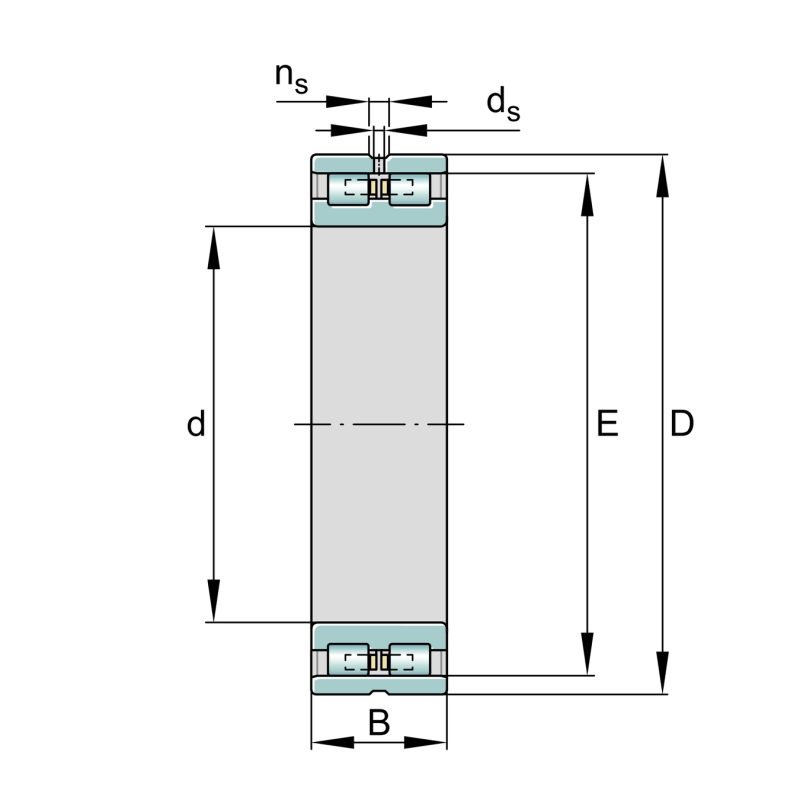

| Raceway diameter outer ring | E | 255 | mm |
| Diameter lubrication hole | ds | 6,30 | mm |
| Bore diameter | d | 180 | mm |
| Breite | B | 74 | mm |
| Basic static load rating, radial | C0r | 1,000,000 | |
| Limiting speed for grease lubrication | nG Grease | 2,850 |
| Außen-Ø | D | 280 | mm |
| Basic dynamic load rating, radial | Cr | 570,000 | |
| Fatigue load limit, radial | Cur | 118,000 | |
| Limiting speed for oil lubrication | nG Oil | 3,300 |
