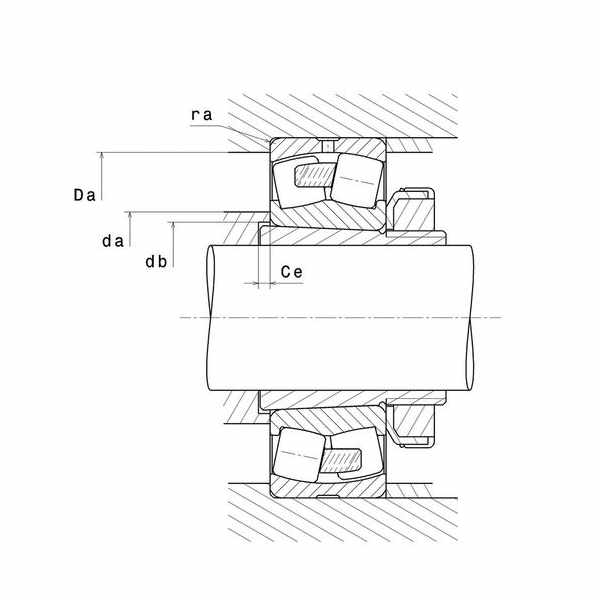

| ra max - Max shaft & housing fillet radius | 2 mm | ||
| Ce - Min length fro Sleeve | 8 mm | ||
| da min - Min shoulder diameter IR | 190,2 mm | ||
| FTF - Characteristic cage frequency | 0,442 Hz | ||
| BPFO - Characteristic outer ring frequency | 10,61 Hz | ||
| Tmin - Min operating temperature | -40 °C | ||
| Nref - Reference thermal speed | 2000 tr/min | ||
| Y1 - Lower axial load coefficient | 2,95 | ||
| e - Coefficient | 0,23 | ||
| C0 - Static load | 1450 kN | ||
| Radial clearance class | CN | ||

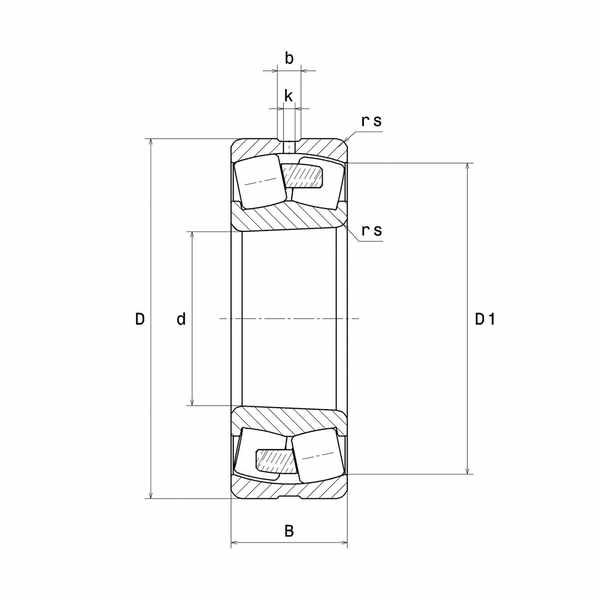

| k - Hole diameter | 6 mm | ||
| Number of lubrication holes | 3 | ||
| D1 - Inner diameter outer ring | 255 mm |
| Da max - Max shoulder diameter OR | 269,8 mm | ||
| db - Min diameter for Sleeve | 189 mm | ||
| BSF - Characteristic rolling element frequency | 8,418 Hz | ||
| BPFI - Characteristic inner ring frequency | 13,39 Hz | ||
| Tmax - Max operating temperature | 200 °C | ||
| Nlim - Mechanical Limit Speed | 2500 tr/min | ||
| Y2 - Upper axial load coefficient | 4,40 | ||
| Y0 - Static axial load coefficient | 2,89 | ||
| Cu - Fatigue limit load | 137 kN | ||
| C - Dynamic load | 1080 kN | ||
| Associated sleeve reference | H3036 | ||
| b - Groove width | 13,24 mm | ||
| rs - Min fillet radius | 2,1 mm | ||
| Brand | NTN |
