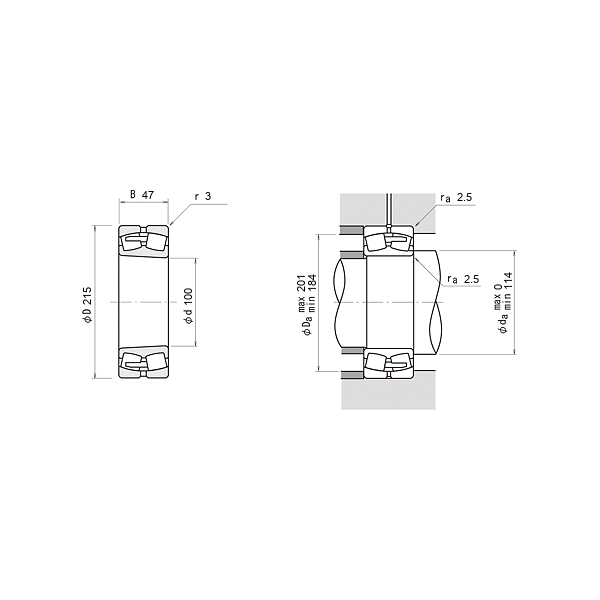

| Bore diameter | d | 100 | mm |
| Breite | B | 47 | mm |
| Shoulder diameter of outer ring | D1 | ≈181.25 | |
| chamfer dimension | rmin | min.3 |
| Außen-Ø | d2 | 215 | mm |
| Shoulder diameter of inner ring | d2 | ≈139 | |
| Chamfer dimension of loose flange ring | F | 127,50 | mm |
| Permissible axial displacement | s | max.2.9 |
