| Bore diameter | d | 100 | mm |
| Breite | B | 47 | mm |
| Basic static load rating, radial | C0r | 57,000 | |
| Limiting speed | nG | 4,700 |
| Außen-Ø | D | 215 | mm |
| Basic dynamic load rating, radial | Cr | 145,000 | |
| Fatigue load limit, radial | Cur | 2,900 | |
| Reference speed | nϑr | 3,850 |
| Minimum diameter shaft shoulder | da min | 114 | mm |
| Maximum fillet radius | ra max | 2,50 | mm |
| Maximum diameter of housing shoulder | Da max | 201 | mm |
| Minimum chamfer dimension | rmin | 3 | mm |
| Shoulder diameter inner ring | d1 | 135,90 | mm |
| Shoulder diameter outer ring | D1 | 181,30 | mm |

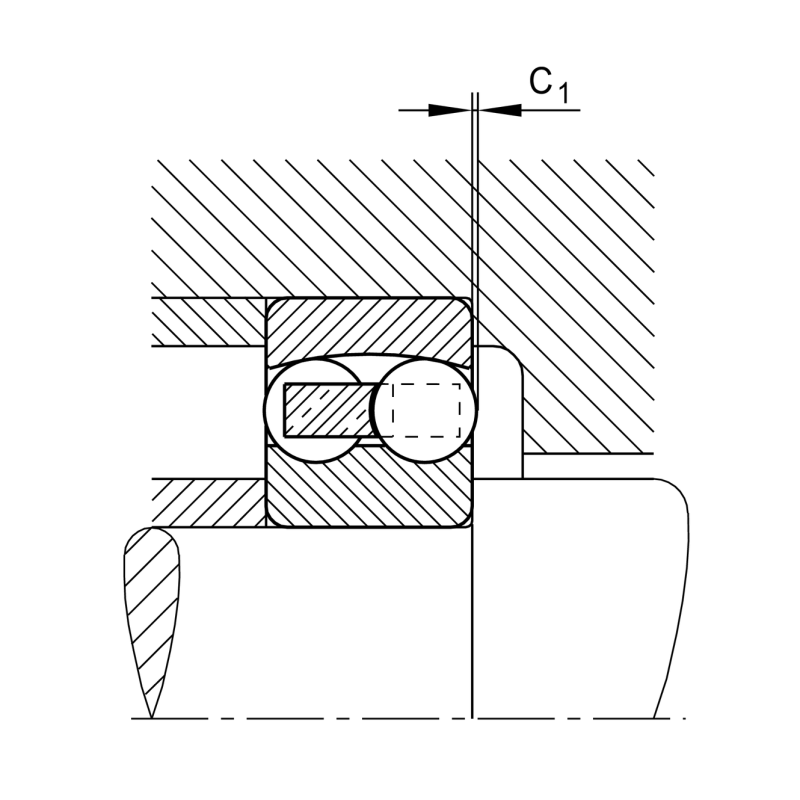

| Overhang rolling element | C1 | 2,40 | mm |
| Hersteller | Teilenummer |
|---|---|
| RIV Officine di Villar Perosa | 21BJ |
| RHP | 1320 |
| Fischer Bearings | P320 |
| SKC | 5932458 |
| Federal Bearings | 1320SA |
| GPZ Bearings | 1320 |
| KOYO | 1320 |
| NTN | 1320 (NTN) |
| Marlin-Rockwell Corp. | 1320 |
| SKF | 1320 (SKF) |
| ISO | 100BS03 |
