| Werkstoff Schale | PC | ||
| Pneumatischer Anschluss 3 | G1/4 | ||
| Pneumatischer Anschluss 1 | G1/4 | ||
| Produktgewicht | 1.300 g | ||
| Mediumstemperatur | 5 °C ... 60 °C | ||
| Lebensmitteltauglichkeit | See supplementary material information | ||
| LABS-Konformität | VDMA24364-B1/B2-L | ||
| Hinweis zum Betriebs-/Steuermedium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Standard nominal flow rate | 950 l/min | ||
| Betriebsdruck | 2 bar ... 12 bar | ||

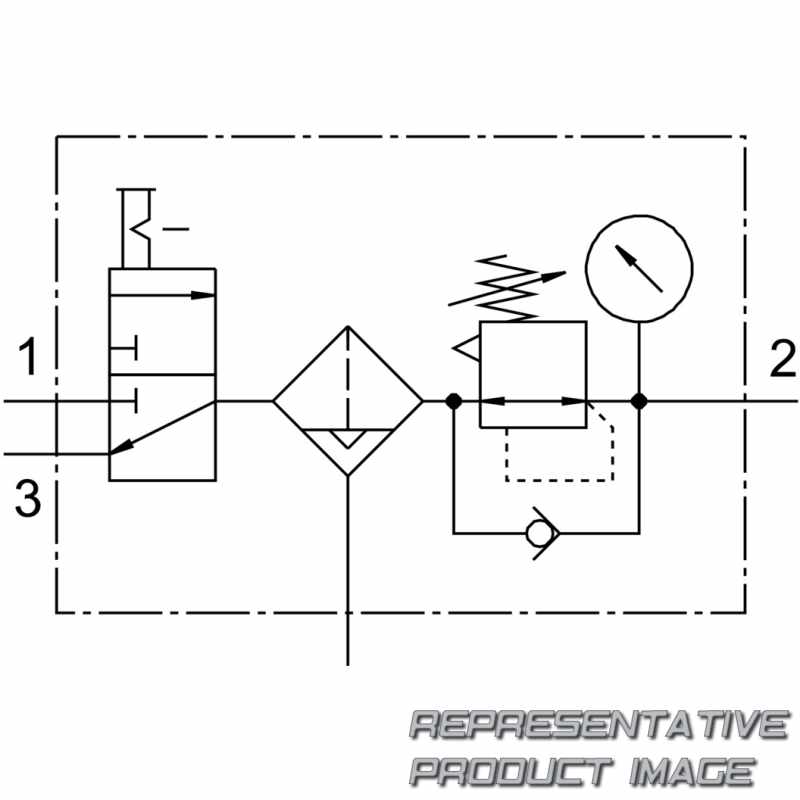

| Symbol | 00991756 | ||
| Controller function | Output pressure constant Via primary pressure compensation With secondary venting With return flow function | ||
| Kondensatablass | Fully automatic | ||
| Einbaulage | Vertical +/-5° | ||
| Baureihe | MS |
| Werkstoff Gehäuse | Die-cast aluminium | ||
| Pneumatischer Anschluss 2 | G1/4 | ||
| Befestigungsart | With accessories | ||
| Umgebungstemperatur | 5 °C ... 60 °C | ||
| Luftreinheitsklasse am Ausgang | Compressed air to ISO 8573-1:2010 [6:4:4] | ||
| Lagertemperatur | -10 °C ... 60 °C | ||
| Korrosionsbeständigkeitsklasse KBK | 2 - Moderate corrosion stress | ||
| Betriebsmedium | Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases | ||
| Druckregelbereich | 0,5 bar ... 12 bar | ||
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) | With pressure gauge | ||
| Bowl guard | Plastic bowl guard | ||
| Konstruktiver Aufbau | On/off valve Filter regulator with pressure gauge | ||
| Filterfeinheit | 5 µm | ||
| Actuator lock | Rotary knob with detent can be closed with accessories | ||
| Baugröße | 4 |
