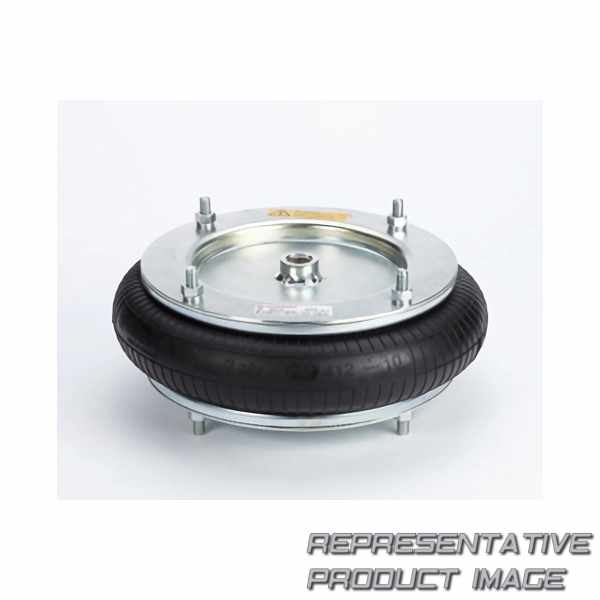

NORGREN M/31121 air bellow

Name: M/31121 NORGREN
Brand: NORGREN
SKU: 788387-de-eur
Price: 857.63 EUR
Availability: InStock

857,63 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Hub	100 mm
max. Druck	0 ... 8 bar

Außendurchmesser	330 mm

body style		bellows
eu country of origin		germany
mil spec		available on request
non magnetic or magnetic		non-magnetic
nuts and screws		zinc chromated steel
operating pressure psi pressure psi min to max range		0 ... 116 psi
operating temperature temperature celsius min to max range		-40 ... 70 °c
height length millimetre		100 mm
product style		bellows
stroke length inch		4"
theoretical force force newton		38850 n

data performance shelf life		10 years
Medium		compressed air
nominal diameter		12"
number of convolutions		1
operating pressure pressure bar min to max range		0 ... 8 bar
operating temperature f temperature fahrenheit min to max range		-40 ... 158 °f
diameter length millimetre		330 mm
Anschlussgröße		g1/2
range		m/31000
stroke length metric length millimetre		100 mm
