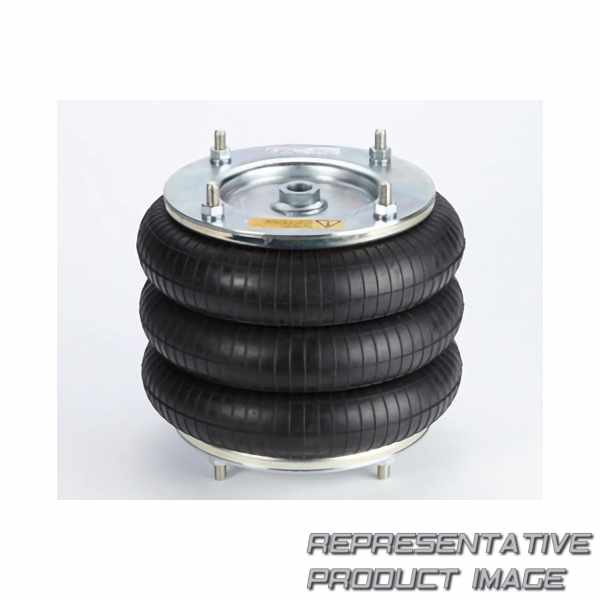

NORGREN M/31103 air bellow

Name: M/31103 NORGREN
Brand: NORGREN
SKU: 782499-de-eur
Price: 1026.62 EUR
Availability: InStock

1.026,62 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Hub	330 mm
max. Druck	0 ... 8 bar

Außendurchmesser	270 mm

body style		bellows
eu country of origin		france
mil spec		available on request
non magnetic or magnetic		non-magnetic
nuts and screws		zinc chromated steel
operating pressure psi pressure psi min to max range		0 ... 116 psi
operating temperature temperature celsius min to max range		-40 ... 70 °c
height length millimetre		150 mm
product style		bellows
stroke length metric length millimetre		330 mm

data performance shelf life		10 years
Medium		compressed air
nominal diameter		10"
number of convolutions		3
operating pressure pressure bar min to max range		0 ... 8 bar
operating temperature f temperature fahrenheit min to max range		-40 ... 158 °f
diameter length millimetre		270 mm
Anschlussgröße		g1/2
range		m/31000
theoretical force force newton		26600 n
