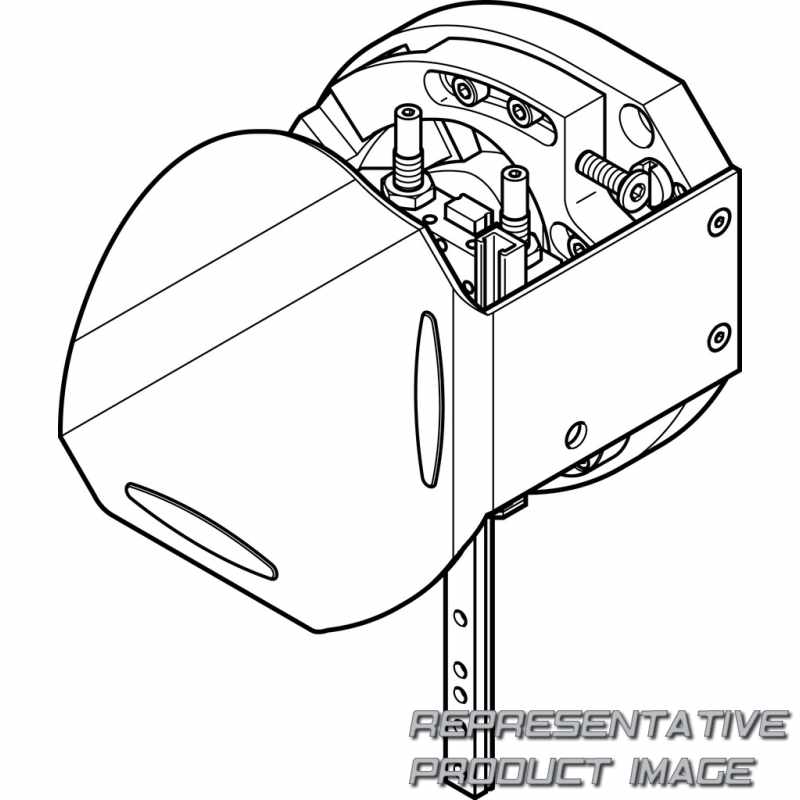

FESTO 540239 Handlingmodul

Name: 540239 FESTO
Brand: FESTO
SKU: 665169-de-eur
Price: 4216.35 EUR
Availability: SoldOut

HSW-16-AS-SD

4.216,35 €

Begrenzter Lagerbestand nur auf Anfrage erhältlich

Technische Daten

Protective devices (SD)	Protective cover
Waiting position	None

Material setting screw		High-alloy steel
Material sensor rail		Wrought aluminium alloy Anodised
Material swivel lever		Case-hardened steel Burnished
Werkstoff Halter		Wrought aluminium alloy Anodised
Material spring pressure piece		High-alloy steel
Material stops		High-alloy steel
Produktgewicht		5.200 g
Max. radial force at drive shaft		75 N
Max. Moment Mz		2,5 Nm
Max. Moment Mx		2,5 Nm
Max. drive torque at drive shaft		2,5 Nm
Repetition accuracy end positions		+/-0.02 mm
Konstruktiver Aufbau		Drive shaft Linear guide plus ball bearing Force pilot operated motion sequence
Dämpfung		Noise reduction via buffers
Max. linear stroke with 90° swivel angle		175/175 mm
Working stroke		20 mm ... 35 mm

Material bar		Wrought aluminium alloy Anodised
Material slotted guide plate		Case-hardened steel Hardened
Material cross-guide		Tempered steel
Material base plate		Wrought aluminium alloy Anodised
Werkstoff Deckel		Wrought aluminium alloy Anodised
Befestigungsart		Via through-hole and centring sleeve
Max. process force in Y direction		50 N
Max. effective load		1,5 kg
Max. Moment My		2,5 Nm
Max. axial force at drive shaft		30 N
Umgebungstemperatur		0 °C ... 60 °C
Positionserkennung		Via proximity switch
Einbaulage		optional
Z stroke		80 mm ... 100 mm
Baugröße		16
