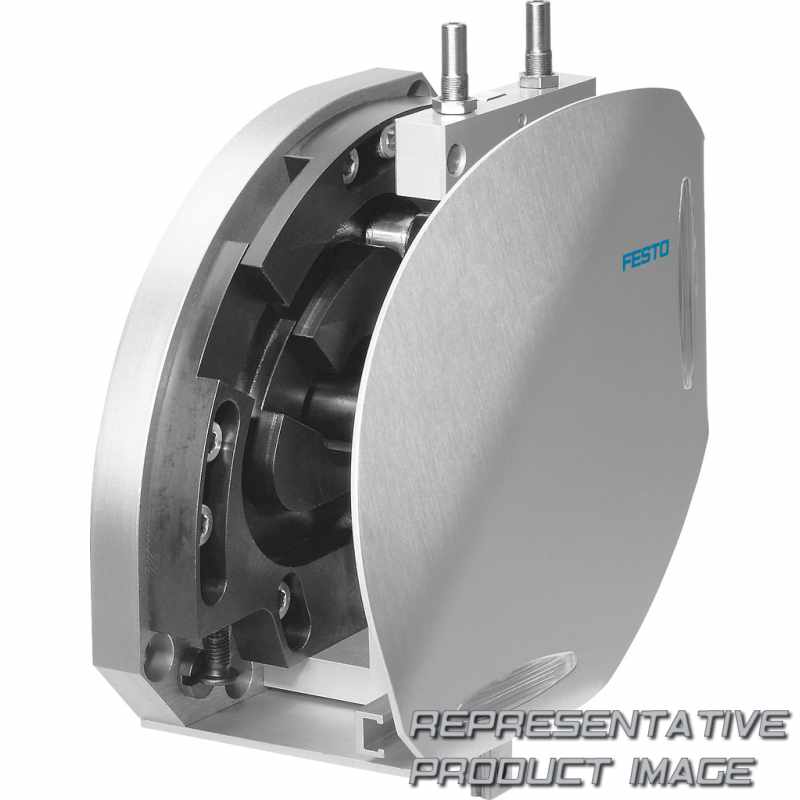

FESTO 540223 Handlingmodul

Name: 540223 FESTO
Brand: FESTO
SKU: 666220-de-eur
Price: 2646.59 EUR
Availability: SoldOut

HSW-10-AP-SD

2.646,59 €

Begrenzter Lagerbestand nur auf Anfrage erhältlich

Technische Daten

Protective devices (SD)	Protective cover
Waiting position	None

Material setting screw		High-alloy steel
Material sensor rail		Wrought aluminium alloy Anodised
Material swivel lever		Case-hardened steel Burnished
Werkstoff Halter		Wrought aluminium alloy Anodised
Material spring pressure piece		High-alloy steel
Material stops		High-alloy steel
Befestigungsart		Via through-hole and centring sleeve
Theoretical force at 0.6 MPa (6 bar, 87 psi)		30 N
Max. effective load		0,5 kg
Max. Moment My		0,6 Nm
Umgebungstemperatur		0 °C ... 60 °C
Betriebsmedium		Compressed air to ISO 8573-1:2010 [7:-:-]
Min. cycle time		0,6 s
Positionserkennung		Via proximity switch
Einbaulage		optional
Z stroke		80 mm ... 100 mm
Baugröße		10

Material bar		Wrought aluminium alloy Anodised
Material slotted guide plate		Case-hardened steel Hardened
Material cross-guide		Tempered steel
Material base plate		Wrought aluminium alloy Anodised
Werkstoff Deckel		Wrought aluminium alloy Anodised
Pneumatischer Anschluss		M3
Produktgewicht		1.350 g
Max. process force in Y direction		30 N
Max. Moment Mz		0,6 Nm
Max. Moment Mx		0,6 Nm
Hinweis zum Betriebs-/Steuermedium		Lubricated operation possible (in which case lubricated operation will always be required)
Repetition accuracy end positions		+/-0.02 mm
Betriebsdruck		4 bar ... 8 bar
Konstruktiver Aufbau		Linear guide plus ball bearing Semi-rotary drive Force pilot operated motion sequence
Dämpfung		Shock absorber at both ends Soft characteristic curve
Max. linear stroke with 90° swivel angle		90/90 mm
Working stroke		9 mm ... 15 mm
