| dust protection seal | SS - With End Seal And Side Seal And Inner Seal | ||

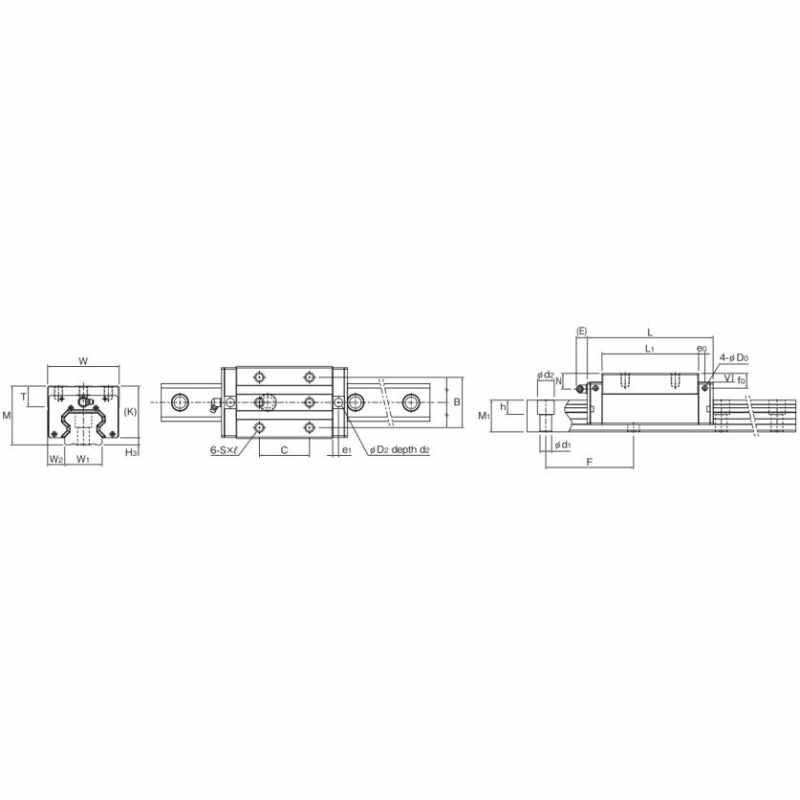

| rail dimensions - d1xd2xh - mm | 14x20x17 | ||
| outer dimensions - heightm - mm | 70 | ||
| block dimensions - b - mm | 60 | ||
| block dimensions - s x l - mm | m10x12.5 | ||
| basic load rating - radial - dynamic c100 - kn | 116 | ||
| outer dimensions - widthw - mm | 86 |
| preload | C0 - No Preload | ||
| Baugröße | 45 | ||
| outer dimensions - lengthl - mm | 185,70 | ||
| block dimensions - c - mm | 80 | ||
| rail dimensions - pitch f - mm | 105 | ||
| basic load rating - radial - static c0 - kn | 326,70 |
