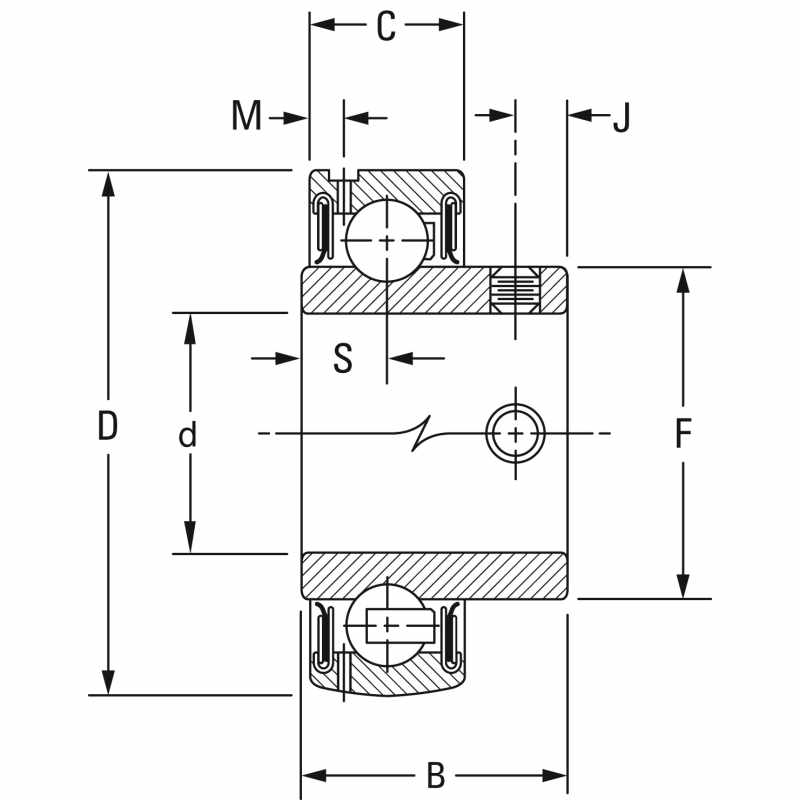

| Outside Diameter D | 72 | mm | |
| Outside Ring Width C | 19 | mm | |
| Center of Bearing from End S | 10,85 | mm | |
| Abmessung F | 46,80 | mm | |
| Abmessung M | 3,68 | mm | |
| Number of Set Screws | 2 |
| Inner Ring Width B | 36,50 | mm | |
| Radius r | 0,60 | mm | |
| Dimension S1 | 25,65 | mm | |
| Abmessung J | 7,87 | ||
| Set Screw Size | M8x1.25 | ||
| Angle between Set Screws | 90 º |
| Shaft Size d | 35 | mm | |
| Bearing Type | Ball Bearing | ||
| Schmierausführung | Relubricatable | ||
| Baureihe | Standard | ||
| Seal Type | Narrow Shroud |
| Bore Type | Cylindrical bore | ||
| Material | Bearing Steel | ||
| O.D. Type | Spherical OD | ||
| Sub Series | GYAE..RRB | ||
| Gewicht | 0,20 | Kg |
