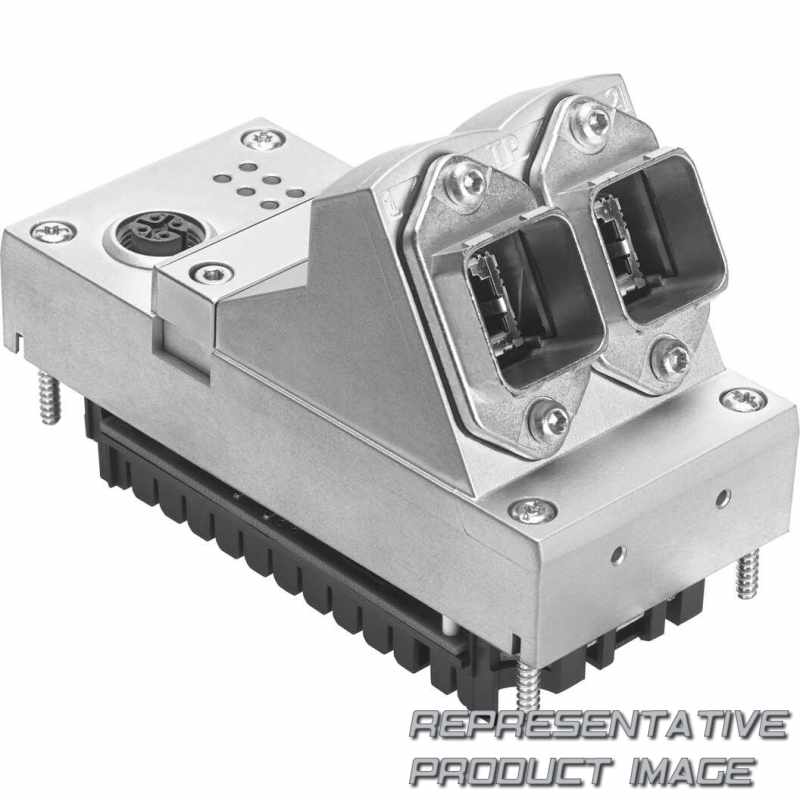

| Werkstoff Gehäuse | Die-cast aluminium | ||
| LED display, bus-specific | M/P: maintenance/PROFIenergy NF: Network fault TP1: Network active port 1 TP2: Network active port 2 | ||
| Max. address volume, inputs | 64 Byte | ||
| Produktgewicht | 280 g | ||
| Schutzart | IP65 IP67 | ||
| Korrosionsbeständigkeitsklasse KBK | 0 - No corrosion stress | ||
| Intern power consumption nominal operating voltage | Typ. 120 mA | ||
| Baud rate | 100 Mbit/s | ||
| Zusatzfunktionen | Acyclic data access via fieldbus Asynchronous data access via Ethernet Fast start-up (FSU) Channel-oriented diagnostics via fieldbus Start-up parameterisation in plain text via fieldbus System status can be mapped using process data Additional diagnostic interface for operator units | ||
| Parameterisation | Diagnostic behaviour Fail-safe response Forcing of channels Signal setup System parameter | ||
| Field bus interface | 2x RJ45 push-pull socket, AIDA |
| LED display, product-specific | M: Modify, parameterisation PL: Load supply PS: Electronics supply, sensor supply SF: System fault | ||
| Protokoll | PROFINET IRT PROFINET RT | ||
| Max. address volume, outputs | 64 Byte | ||
| Umgebungstemperatur | -5 °C ... 50 °C | ||
| Lagertemperatur | -20 °C ... 70 °C | ||
| Nennbetriebsspannung DC | 24 V | ||
| Betriebsspannungsbereich DC | 18 V ... 30 V | ||
| Operator controls | DIL switch Optional memory card | ||
| Configuration support | GSDML file | ||
| Device-specific diagnostics | Channel-oriented and module-oriented diagnostics Undervoltage of modules Diagnostic memory | ||
| Abmessungen B x L x H | (incl. interlinking block) 50 x 107 x 80 mm |
