| control pressure max. | 10 bar | ||
| frame size | iso 1 | ||
| compressed air connection pilot exhaust | base plate iso 5599-1 | ||
| compressed air connection, exhaust | base plate iso 5599-1 | ||
| Anschlussart | plate connection | ||
| valve type | spool valve, positive overlapping | ||
| Standards | iso 5599-1 | ||
| Dichtprinzip | soft seal | ||
| electrical connection size | en 175301-803, form a | ||
| Handhilfsbetätigung | without detent | ||
| working pressure min. | 1 bar | ||

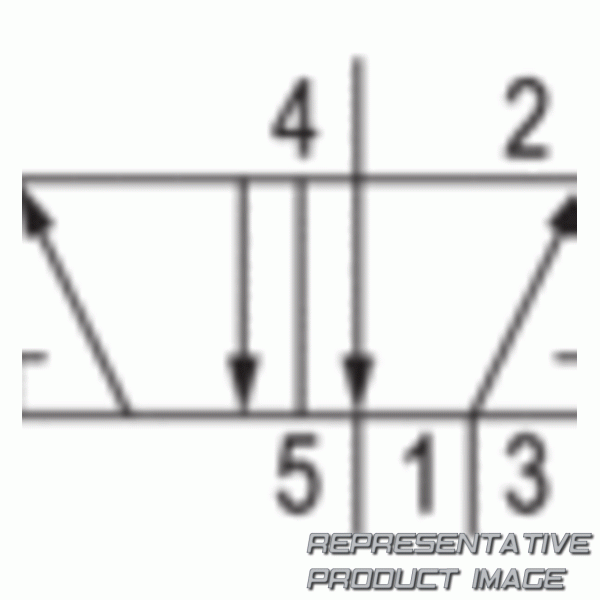

| switching principle | 5/2 | ||
| activation | electrically |
| control pressure min. | 1 bar | ||
| basic valve with electrical connector | basic valve without coil | ||
| compressed air connection pilot input | base plate iso 5599-1 | ||
| compressed air connection input | base plate iso 5599-1 | ||
| blocking principle | single base plate principle | ||
| pilot valve width | 30 mm | ||
| pilot | internal | ||
| actuating control | double solenoid | ||
| electrical connection type | plug | ||
| working pressure max | 10 bar | ||
| compressed air connection output | base plate iso 5599-1 | ||
| nominal flow qn | 1060 l/min |
