| activation | electrically | ||

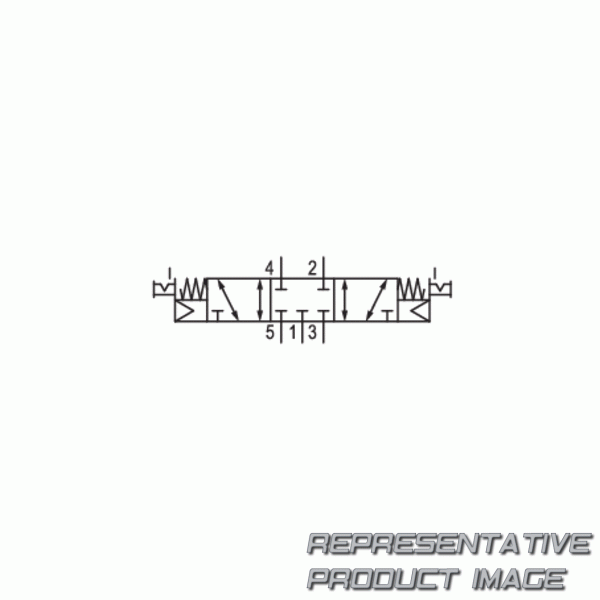

| switching principle | 5/3, closed center | ||
| Handhilfsbetätigung | with detent | ||
| nominal flow qn | 900 l/min | ||
| working pressure min. | 3 bar | ||
| electrical connection type | plug | ||
| connector standard | en 175301-803:2006 | ||
| pilot valve width | 30 mm | ||
| basic valve with electrical connector | basic valve without coil | ||
| Dichtprinzip | soft seal | ||
| min. ambient temperature | 0 °c | ||
| Gehäusematerial | die cast zinc, polyamide fiber-glass reinforced |
| frame size | cd07 | ||
| actuating control | double solenoid | ||
| pilot | internal | ||
| compressed air connection | g 1/4 | ||
| working pressure max | 10 bar | ||
| electrical connection size | en 175301-803, form a | ||
| Verpolungsschutz | protected against polarity reversal | ||
| compatibility index | 13, 14 | ||
| Einschaltdauer | 100 % | ||
| Standards | namur | ||
| max. ambient temperature | 50 °c |
