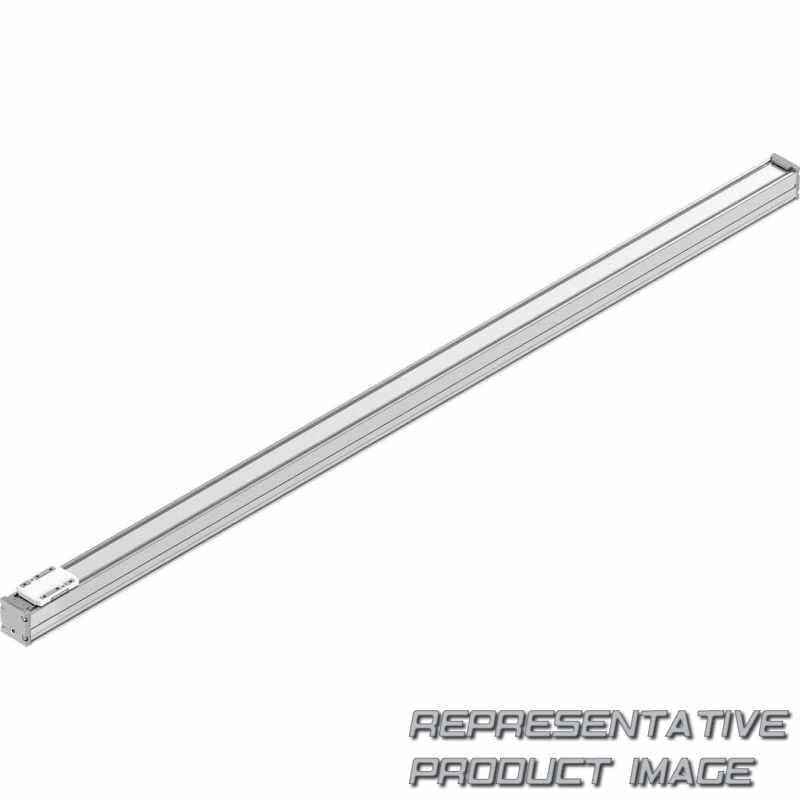

| Material slide | Die-cast aluminium | ||
| Material guide slide | Steel | ||
| Material cover tape | High-alloy stainless steel | ||
| Material profile | Anodised wrought aluminium alloy | ||
| Gewichtszuschlag pro 10 mm Hub | 23 g | ||
| Mz at theoretical life value of 100 km (only guide consideration) | 17 Nm | ||
| Mx at theoretical life value of 100 km (only guide consideration) | 20 Nm | ||
| Fy at theoretical life value of 100 km (only guide consideration) | 1.104 N | ||
| Torsional mass moment of inertia It | 8.500 mm⁴ | ||
| Max. Moment My | 4,7 Nm | ||
| Max. Kraft Fz | 600 N | ||
| 2nd moment of area Iz | 170.000 mm⁴ | ||
| Umgebungstemperatur | 0 °C ... 50 °C | ||
| Reinraumklasse | Class 7 according to ISO 14644-1 | ||
| LABS-Konformität | VDMA24364 zone III | ||
| Einschaltdauer | 100% | ||
| Max. acceleration | 250 m/s² | ||
| Konstruktiver Aufbau | Guidance | ||
| Einbaulage | optional | ||
| Baugröße | 45 |
| Material guide rail | Steel | ||
| Werkstoff Deckel | Painted die-cast aluminium | ||
| Werkstoff-Hinweis | RoHS-compliant | ||
| Material end cap | Painted die cast aluminium | ||
| Bewegte Masse | 144 g | ||
| My at theoretical life value of 100 km (only guide consideration) | 17 Nm | ||
| Fz at theoretical life value of 100 km (only guide consideration) | 2.208 N | ||
| Displacement force | 4,5 N | ||
| Max. Moment Mz | 4,7 Nm | ||
| Max. Moment Mx | 5,5 Nm | ||
| Max. Kraft Fy | 300 N | ||
| 2nd moment of area Iy | 140.000 mm⁴ | ||
| Schutzart | IP40 | ||
| Eignung zur Produktion von Li-Ionen Batterien | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils | ||
| Korrosionsbeständigkeitsklasse KBK | 0 - No corrosion stress | ||
| Max. Geschwindigkeit | 1,5 m/s | ||
| Symbol | 00992984 | ||
| Führung | Recirculating ball bearing guide | ||
| Stroke reserve | 0 mm | ||
| Working stroke | 1.200 mm |
