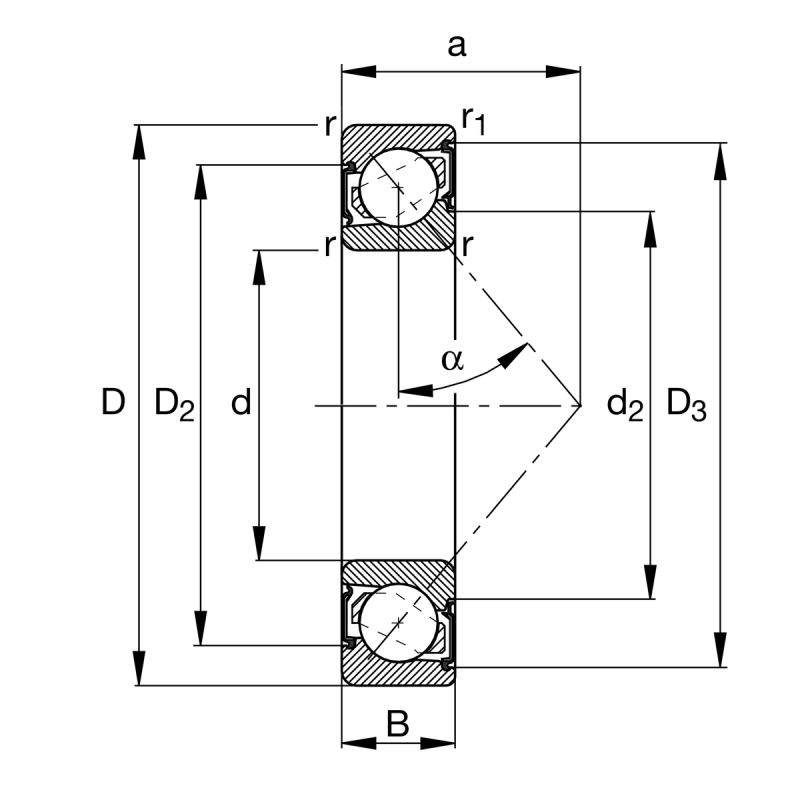

| Bore diameter | d | 25 | mm |
| Breite | B | 17 | mm |
| Basic static load rating, radial | C0r | 15,800 | |
| Limiting speed | nG | 7,100 |
| Außen-Ø | D | 62 | mm |
| Basic dynamic load rating, radial | Cr | 30,000 | |
| Fatigue load limit, radial | Cur | 1,100 |

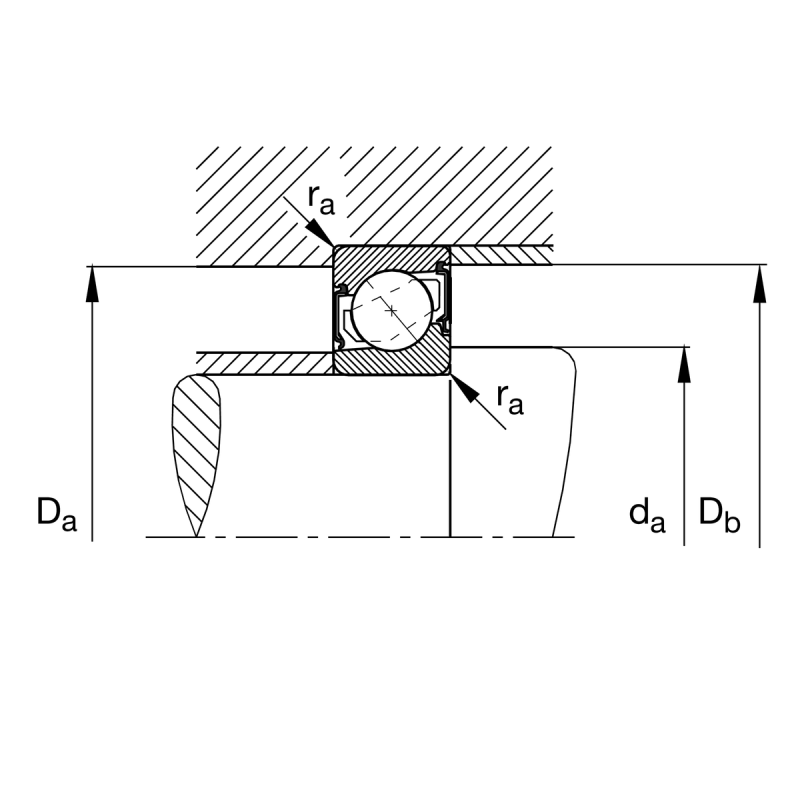

| Minimum diameter of shaft shoulder | da min | 32 | mm |
| Maximum diameter of housing shoulder | Db max | 57,80 | mm |
| Maximum fillet radius of housing | ra1 max | 0,60 | mm |
| Maximum diameter of housing shoulder | Da max | 55 | mm |
| Maximum fillet radius of shaft | ra max | 1 | mm |
| Minimum chamfer dimension | rmin | 0,60 | mm |
| Caliber diameter on outer ring wide side face | D2 | 50,30 | mm |
| Shoulder diameter on inner ring wide side face | d1 | 39,90 | mm |
| Distance between the apexes of the pressure cones | a | 27 | mm |
| Shoulder diameter on outer ring wide side face | D1 | 48 | mm |
| Caliber diameter on outer ring small side face | D3 | 57,10 | mm |
| Caliber diameter on inner ring wide side face | d2 | 36,20 | mm |
| Contact angle | α | 40 | ° |
