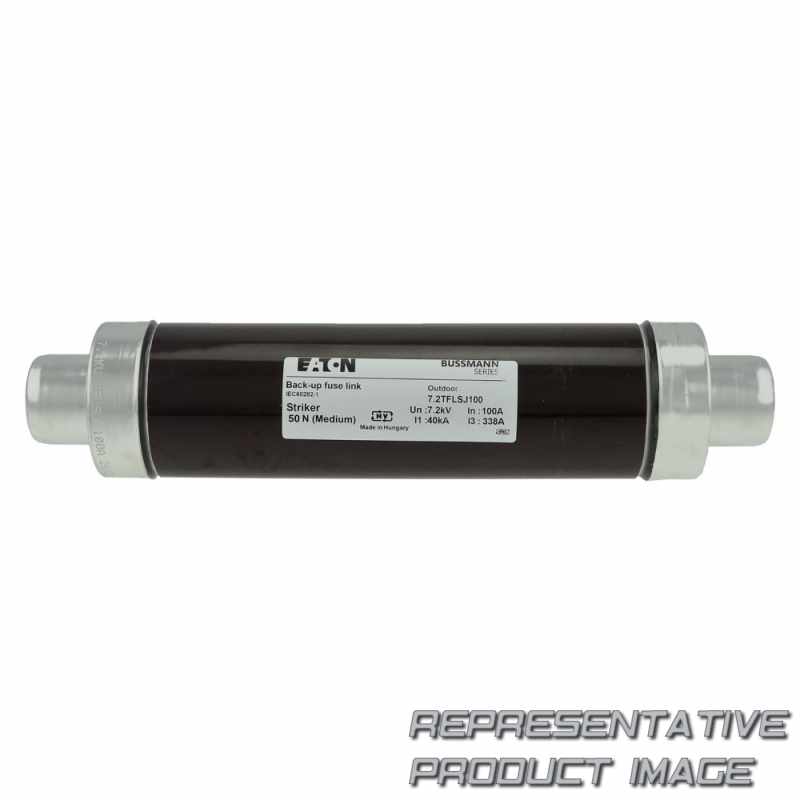

EATON 7.2TFLSJ100

Name: 7.2TFLSJ100 EATON
Brand: EATON
SKU: 801866-de-eur
Price: 1259.32 EUR
Availability: InStock

1.259,32 € ~~2.518,63 €~~ -49%

4 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Einbaulage	clip-in
Breite	76 mm

Gewicht	3,10Kg

packaging type		standard
installation technique		air
product application		primary side transformer protection
class		class back-up
used with		270303 fuse clip a3354730 fuse clip
Typ		fuse
barrels		1
utilization category		other
performance cat according to iec 60282-1		back-up
fuse indicator		with striker
with striker		yes
rated frequency - min		50 hz
amperage rating		100 a
release characteristic		other
interrupt rating		40 kaic
warranty		not applicable
product width		76 mm
product length/depth		292 mm
UPC		051712186001

voltage type		ac
Anwendung		transformer protection indoor or outdoor use
pre arc (i2t)		9.1 x 1000
breaking capacity		40 ka
fuse diameter		76 mm
resistance		4.65 ohms
watt losses		64 w
construction size		76 x 292 mm
rated frequency - max		50 hz
voltage rating		7.2 kv
fuse size		76 x 292 mm
fuse type		tflsj
mounting method		clip-in
Standard		din
compliances		din 43625 vde 0670-4 iec 60282-1
Produktgewicht		3100 g
product height		76 mm
ean		5027590488396
