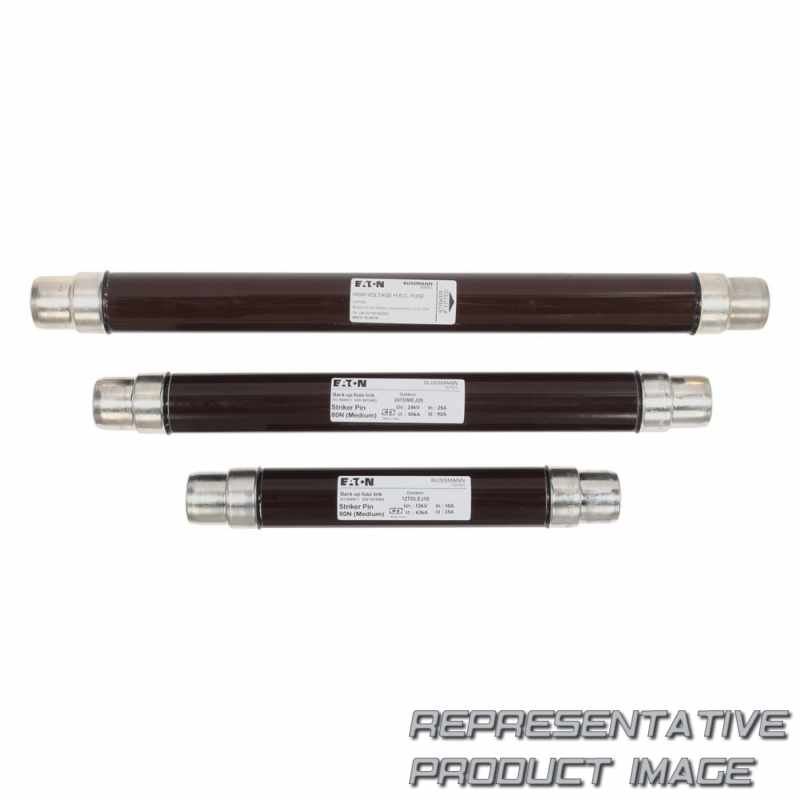

EATON 7.2TFLSJ160

Name: 7.2TFLSJ160 EATON
Brand: EATON
SKU: 731487-de-eur
Price: 212.48 EUR
Availability: InStock

212,48 €

2 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Einbaulage	clip-in
Breite	76 mm

Gewicht	3,10Kg

UPC		051712186025
product length/depth		292 mm
product width		76 mm
warranty		not applicable
interrupt rating		40 kaic
release characteristic		other
amperage rating		160 a
rated frequency - min		50 hz
with striker		yes
fuse indicator		with striker
performance cat according to iec 60282-1		back-up
utilization category		other
barrels		1
Typ		fuse
used with		270303 fuse clip a3354730 fuse clip
class		class back-up
product application		primary side transformer protection
installation technique		air

ean		5027590488419
product height		76 mm
Produktgewicht		3100 g
compliances		din 43625 vde 0670-4 iec 60282-1
Standard		din
mounting method		clip-in
fuse type		tflsj
fuse size		76 x 292 mm
voltage rating		7.2 kv
rated frequency - max		50 hz
construction size		76 x 292 mm
watt losses		97 w
resistance		2.73 ohms
fuse diameter		76 mm
breaking capacity		40 ka
pre arc (i2t)		3 x 10000
Anwendung		transformer protection indoor or outdoor use
voltage type		ac
