| Db min - Min stop ring position diameter | 0 mm | ||

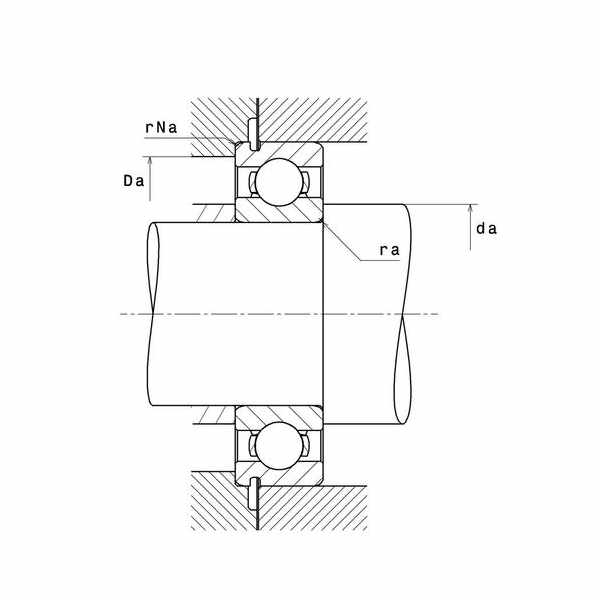

| ra max - Max shaft & housing fillet radius | 1,5 mm | ||
| da min - Min shoulder diameter IR | 73 mm | ||
| FTF - Characteristic cage frequency | 0,41 Hz | ||
| BPFO - Characteristic outer ring frequency | 4,099 Hz | ||
| Tmin - Min operating temperature | -40 °C | ||
| Nref - Reference thermal speed | 6400 tr/min | ||
| Cu - Fatigue limit load | 1,82 kN | ||
| C - Dynamic load | 60,3 kN | ||
| r0 max - Max bottom groove radius | 0,6 mm | ||
| b min - Min groove width | 3,1 mm | ||
| rNs - Min fillet radius | 0,5 mm | ||
| a max - Max position groove | 4,06 mm | ||

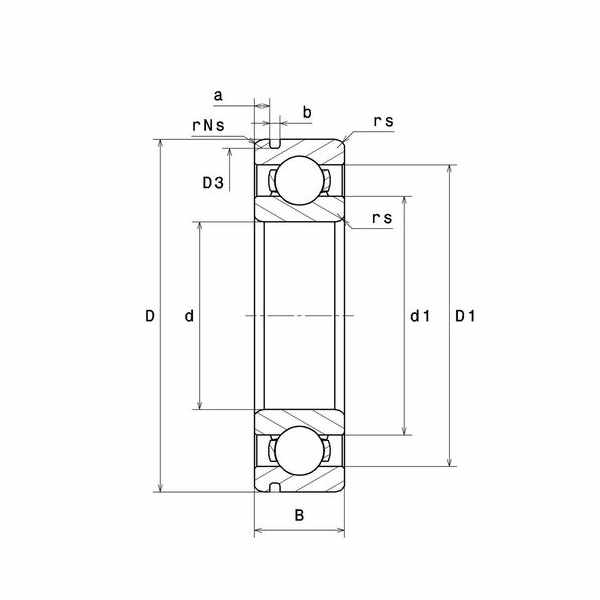

| D1 - Inner diameter outer ring | 107,8 mm |
| rNa max - Max fillet radius on segment side | 0,5 mm | ||
| Da max - Max shoulder diameter OR | 112 mm | ||
| BSF - Characteristic rolling element frequency | 5,369 Hz | ||
| BPFI - Characteristic inner ring frequency | 5,901 Hz | ||
| Tmax - Max operating temperature | 120 °C | ||
| Nlim - Mechanical Limit Speed | 9000 tr/min | ||
| f0 - Coefficient | 14,40 | ||
| C0 - Static load | 40,1 kN | ||
| Radial clearance class | CN | ||
| b max - Max groove width | 3,4 mm | ||
| D3 - Max bottom groove diameter | 115,21 mm | ||
| rs - Min fillet radius | 1,5 mm | ||
| a min - Min position Groove | 3,86 mm | ||
| Brand | SNR |
