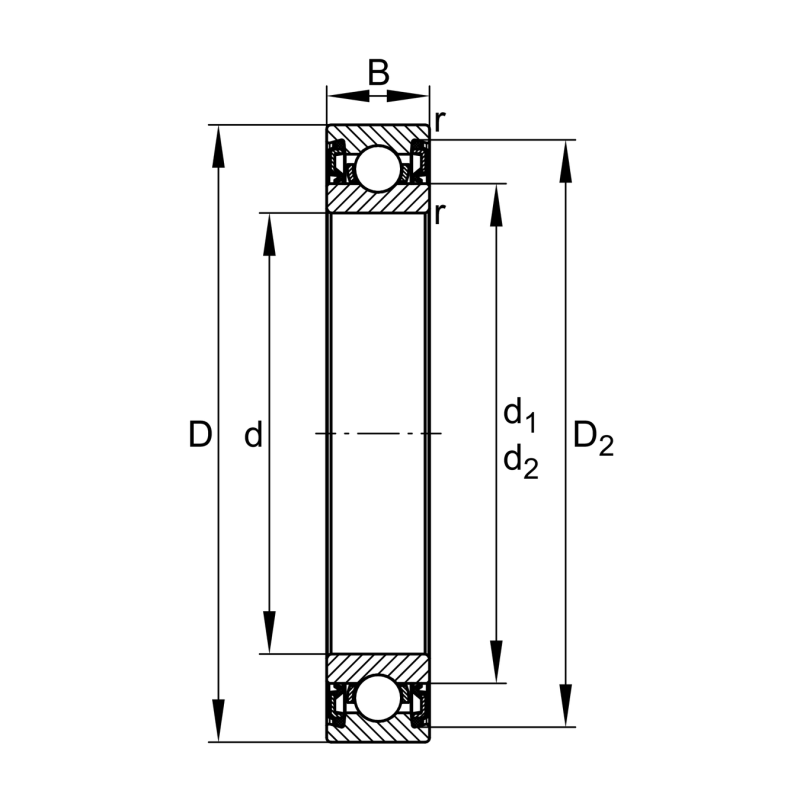

| Bore diameter | d | 105 | mm |
| Breite | B | 13 | mm |
| Basic static load rating, radial | C0r | 23,600 | |
| Limiting speed | nG | 6,000 |
| Außen-Ø | D | 130 | mm |
| Basic dynamic load rating, radial | Cr | 22,100 | |
| Fatigue load limit, radial | Cur | 1,320 | |
| Reference speed | nϑr | 3,900 |

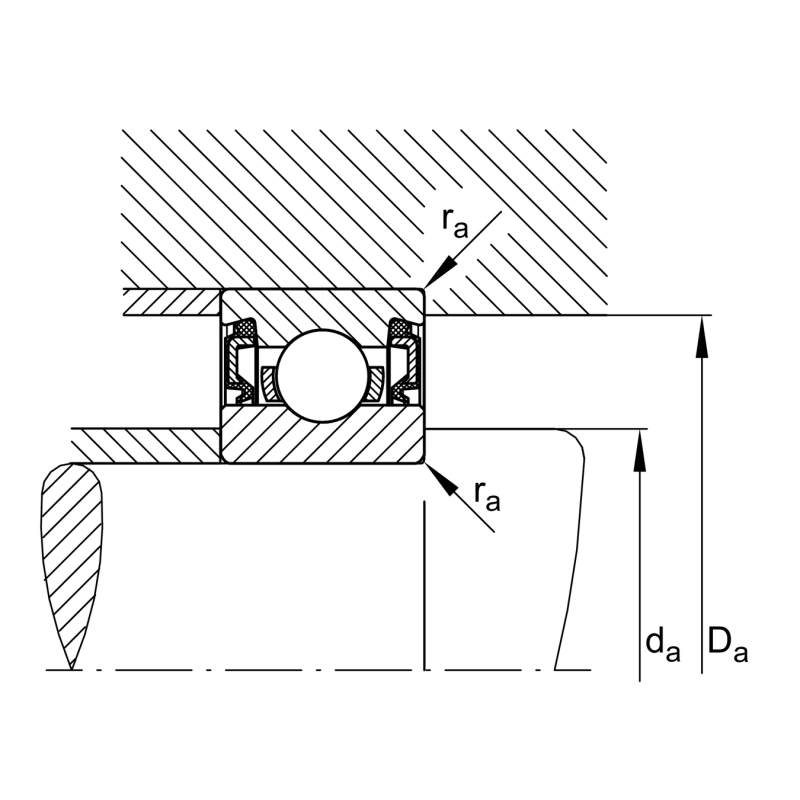

| Minimum diameter shaft shoulder | da min | 109,60 | mm |
| Maximum fillet radius | ra max | 1 | mm |
| Maximum diameter of housing shoulder | Da max | 125,40 | mm |
| Minimum chamfer dimension | rmin | 1 | mm |
| Shoulder diameter inner ring | d1 | 113,20 | mm |
| Caliber diameter outer ring | D2 | 124,20 | mm |
