| activation | electrically | ||

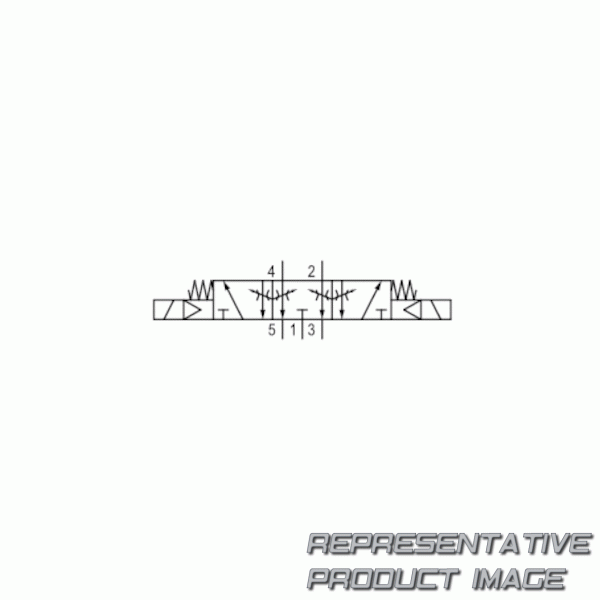

| switching principle | 5/3 | ||
| compressed air connection output | base plate iso 5599-1 | ||
| working pressure max | 16 bar | ||
| pilot | external, internal | ||
| pilot valve width | 30 mm | ||
| blocking principle | single base plate principle | ||
| compressed air connection input | base plate iso 5599-1 | ||
| flow conductance c | 14.1 l/(s*bar) | ||
| frame size | iso 3 | ||
| control pressure max. | 16 bar | ||
| max. ambient temperature | 70 °c | ||
| max. medium temperature | 70 °c |
| nominal flow qn | 4100 l/min | ||
| Ausführung | closed center | ||
| working pressure min. | -0.95 bar | ||
| Dichtprinzip | soft seal | ||
| Standards | iso 5599-1 | ||
| valve type | spool valve | ||
| Anschlussart | plate connection | ||
| compressed air connection, exhaust | base plate iso 5599-1 | ||
| basic valve with electrical connector | basic valve without pilot valve | ||
| control pressure min. | 3 bar | ||
| min. ambient temperature | -20 °c | ||
| min. medium temperature | -20 °c |
