| electrical connection type | plug | ||
| Ausführung | exhausted center | ||
| working pressure min. | 3 bar | ||
| dc operating voltage | 24 v | ||
| electrical connection size | en 175301-803, form c | ||
| pilot | internal | ||
| Standards | iso 15407-1 | ||
| valve type | spool valve, positive overlapping | ||
| compressed air connection input | base plate din iso 15407-1 | ||
| compressed air connection pilot input | base plate din iso 15407-1 | ||
| power consumption dc | 2.06 w | ||
| frame size | 26 mm | ||
| control pressure max. | 16 bar |

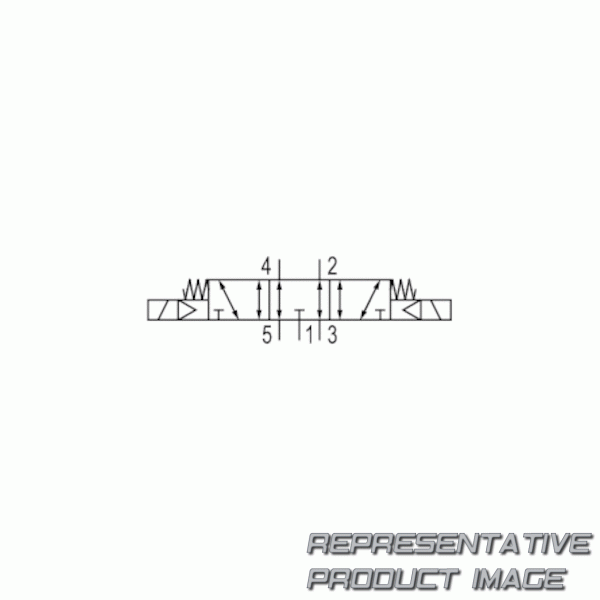

| switching principle | 5/3 | ||
| compressed air connection output | base plate din iso 15407-1 | ||
| working pressure max | 16 bar | ||
| voltage tolerance dc | -10% / +10% | ||
| Dichtprinzip | soft seal | ||
| certificates | free of substances that impair surface wetting in the coating process | ||
| pilot valve width | 26 mm | ||
| Anschlussart | plate connection | ||
| compressed air connection, exhaust | base plate din iso 15407-1 | ||
| compressed air connection pilot exhaust | base plate din iso 15407-1 | ||
| power consumption | low power consumption | ||
| control pressure min. | 3 bar |
