| activation | electrically | ||

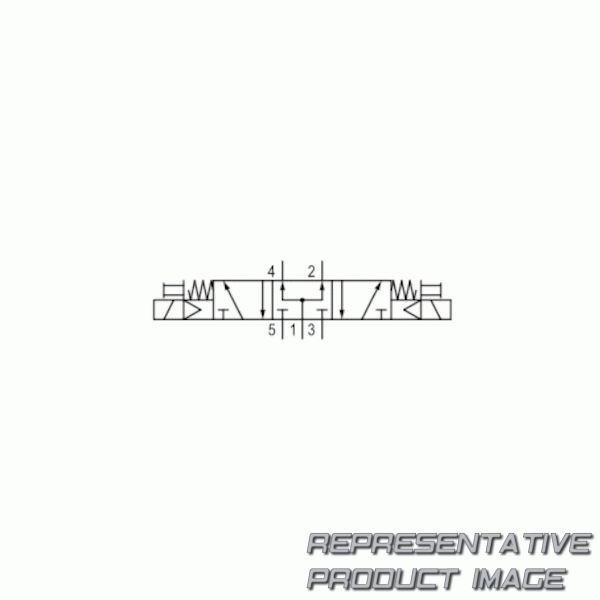

| switching principle | 5/3 | ||
| compressed air connection output | base plate iso 5599-1 | ||
| working pressure max | 16 bar | ||
| operational voltage ac at 50 hz | 42 v | ||
| voltage tolerance ac 50 hz | -10% / +10% | ||
| electrical connection type | plug | ||
| Dichtprinzip | soft seal | ||
| Standards | iso 5599-1 | ||
| valve type | spool valve | ||
| Anschlussart | plate connection | ||
| compressed air connection, exhaust | base plate iso 5599-1 | ||
| power consumption dc | 6.7 w |
| nominal flow qn | 1100 l/min | ||
| Ausführung | pressurized center | ||
| working pressure min. | 3 bar | ||
| dc operating voltage | 24 v | ||
| voltage tolerance dc | -10% / +10% | ||
| Handhilfsbetätigung | without detent | ||
| electrical connection size | en 175301-803, form a | ||
| pilot | internal | ||
| pilot valve width | 30x22 mm cnomo | ||
| blocking principle | single base plate principle | ||
| compressed air connection input | base plate iso 5599-1 | ||
| compressed air connection pilot exhaust | m5 |
