| activation | electrically | ||

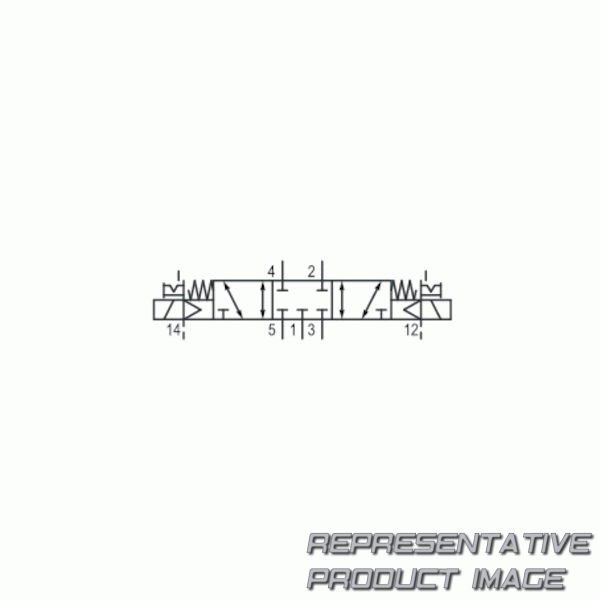

| switching principle | 5/3, closed center | ||
| actuating control | double solenoid | ||
| pilot | external | ||
| compressed air connection | g 1/4 | ||
| working pressure max | 10 bar | ||
| electrical connection type | plug | ||
| connector standard | en 175301-803:2006 | ||
| Verpolungsschutz | protected against polarity reversal | ||
| compatibility index | 13, 14 | ||
| Dichtprinzip | soft seal | ||
| max. ambient temperature | 50 °c | ||
| Gewicht | 0.72 kg |
| frame size | cd07 | ||
| Ventilfunktion | closed center | ||
| Handhilfsbetätigung | with detent | ||
| nominal flow qn | 900 l/min | ||
| working pressure min. | -0.95 bar | ||
| operational↩voltage | 230 v ac | ||
| electrical connection size | en 175301-803, form a | ||
| protection class with connection | ip65 | ||
| pilot valve width | 30 mm | ||
| Einschaltdauer | 100 % | ||
| min. ambient temperature | 0 °c | ||
| temperature resistance | -25 °c cold-resistant |
