| activation | electrically | ||

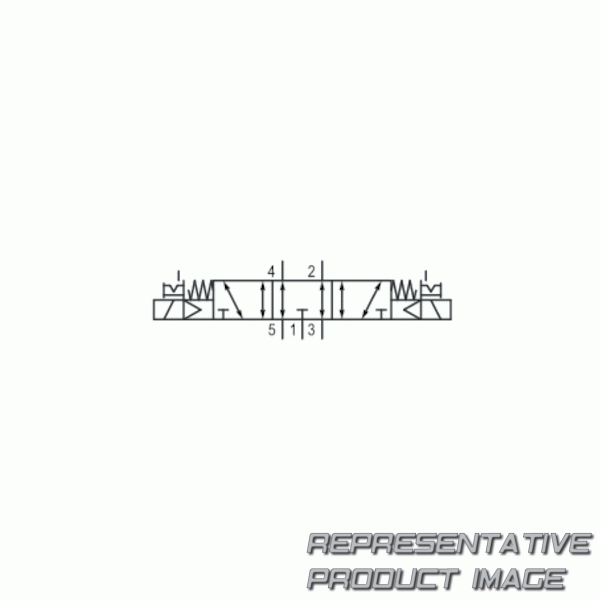

| switching principle | 5/3, exhausted center | ||
| actuating control | double solenoid | ||
| pilot | internal | ||
| compressed air connection | g 1/4 | ||
| working pressure max | 10 bar | ||
| voltage tolerance dc | -10% / +10% | ||
| electrical connection size | en 175301-803, form a | ||
| protection class with connection | ip65 | ||
| pilot valve width | 30 mm | ||
| Einschaltdauer | 100 % | ||
| typ. switch-off time | 55 ms | ||
| min. ambient temperature | 0 °c |
| frame size | cd07 | ||
| Ventilfunktion | exhausted center | ||
| Handhilfsbetätigung | with detent | ||
| nominal flow qn | 900 l/min | ||
| working pressure min. | 3 bar | ||
| operational↩voltage | 24 v dc | ||
| electrical connection type | plug | ||
| connector standard | en 175301-803:2006 | ||
| Verpolungsschutz | protected against polarity reversal | ||
| compatibility index | 13, 14 | ||
| typ. switch-on time | 25 ms | ||
| Dichtprinzip | soft seal |
