| Werkstoff Gehäuse | Die-cast zinc | ||
| Befestigungsart | Front panel mounting On mounting frame Either: | ||
| Umgebungstemperatur | -10 °C ... 60 °C | ||
| Hinweis zum Betriebs-/Steuermedium | Lubricated operation not possible | ||
| Explosionsschutz | The information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | ||
| Pause duration for reset | ≥ 55 ms | ||
| Standard nominal flow rate | 90 l/min | ||
| Note on forced dynamization | Switching frequency min. 1/week | ||

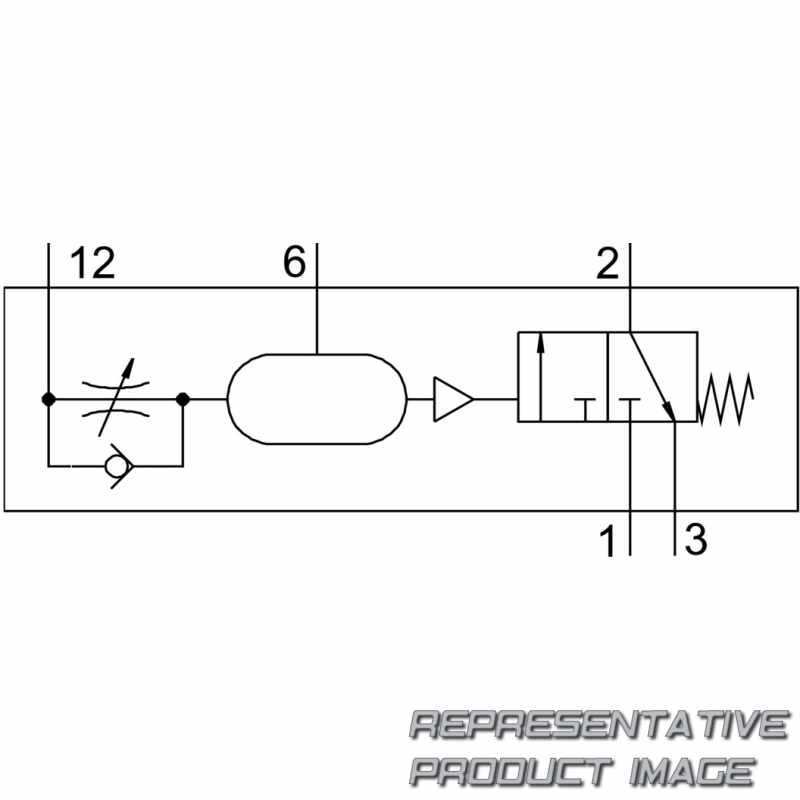

| Symbol | 00991130 | ||
| Betätigungsart | Pneumatic |
| Pneumatischer Anschluss | PK-3 | ||
| Produktgewicht | 150 g | ||
| Steuermedium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Betriebsmedium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Repetition accuracy of time setting | ± 0.5 s | ||
| Adjustable delay time | 0,25 s ... 5 s | ||
| Betriebsdruck | 2,5 bar ... 8 bar | ||
| Überdeckung | Underlap | ||
| Konstruktiver Aufbau | Poppet valve with spring return | ||
| Nennweite | 2 mm |
