| activation | pneumatically | ||

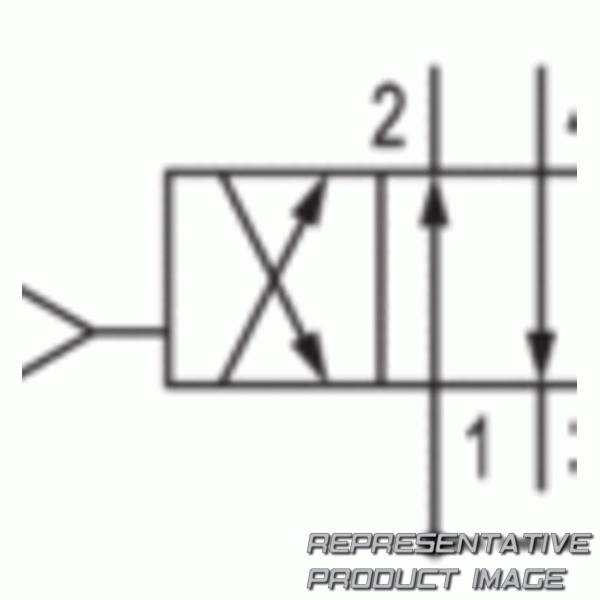

| switching principle | 4/2 | ||
| actuating control | single air pilot | ||
| Anschlussart | pipe connection | ||
| working pressure max | 10 bar | ||
| valve type | poppet valve | ||
| control pressure max. | 10 bar | ||
| max. ambient temperature | 60 °c | ||
| max. medium temperature | 60 °c | ||
| max. particle size | 50 µm | ||
| oil content of compressed air max. | 1 mg/m³ | ||
| compressed air connection pilot exhaust | Ø 6x1 | ||
| Gewicht | 0.048 kg |
| nominal flow qn | 200 l/min | ||
| return type | with air spring return | ||
| compressed air connection output | Ø 6x1 | ||
| working pressure min. | 2 bar | ||
| Dichtprinzip | soft seal | ||
| control pressure min. | 2 bar | ||
| min. ambient temperature | -15 °c | ||
| min. medium temperature | -15 °c | ||
| Medium | compressed air | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| compressed air connection, exhaust | Ø 6x1 | ||
| mounting on manifold strip | prs strip |
