| activation | electrically | ||

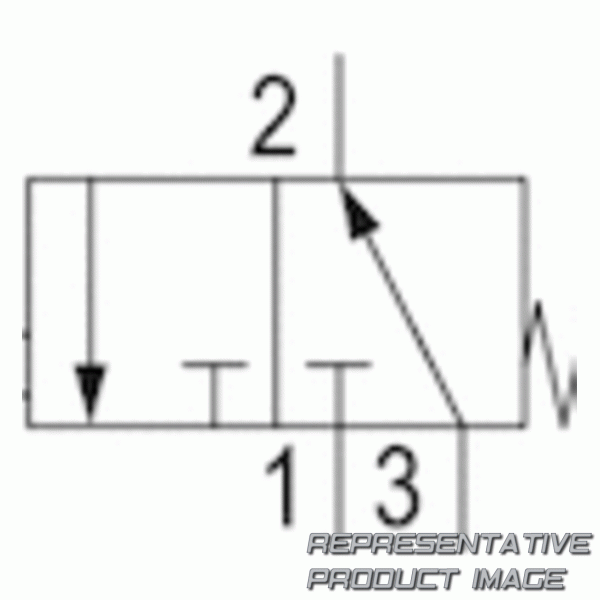

| switching principle | 3/2, with spring return | ||
| Handhilfsbetätigung | with detent | ||
| compressed air connection | cnomo | ||
| working pressure min. | 0 bar | ||
| electrical connection type | plug | ||
| basic valve with electrical connector | basic valve without coil | ||
| Dichtprinzip | 30 mm, soft seal | ||
| Einschaltdauer | 100 % | ||
| min. ambient temperature | -10 °c | ||
| Gewicht | 0.06 kg |
| frame size | do30 | ||
| Ventilfunktion | nc | ||
| nominal flow qn | 72 l/min | ||
| compressed air connection output | cnomo | ||
| working pressure max | 10 bar | ||
| electrical connection size | en 175301-803, form a | ||
| protection class with connection | ip65 | ||
| compatibility index | 15 | ||
| Standards | cnomo / nfe 49-003-1 | ||
| max. ambient temperature | 50 °c | ||
| Gehäusematerial | plastic |
